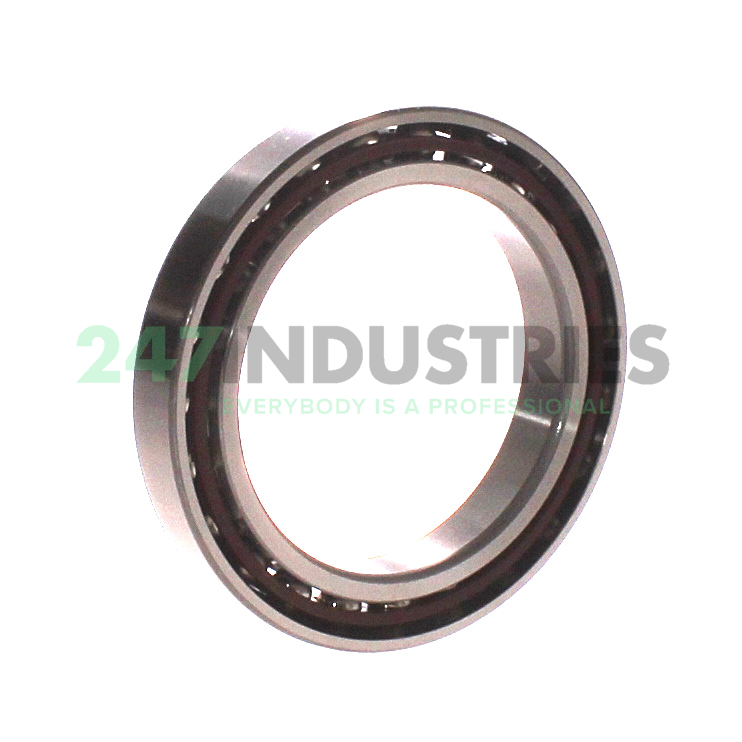

71912.E.T.P2H.UL IBC Bearings

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 85
3. Width (B) MM 13
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.5118

Suffix description

1. E 25° Contact Angle
2. T Cage Of Machined Phenolic Resin, Located On Rolling Elements
3. P2H Bearing With Extreme High Running Accuracy (Abec9) And Form Tolerance (Abec7)
4. UL Universal, Light Preload

Technical details

1. Availability 11 pcs
2. Brand IBC Bearings
3. Item number 71912.E.T.P2H.UL IBC Bearings
4. Also known as 71912ACDGA/P4A
   B71912-E-T-P4S-UL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.19

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
