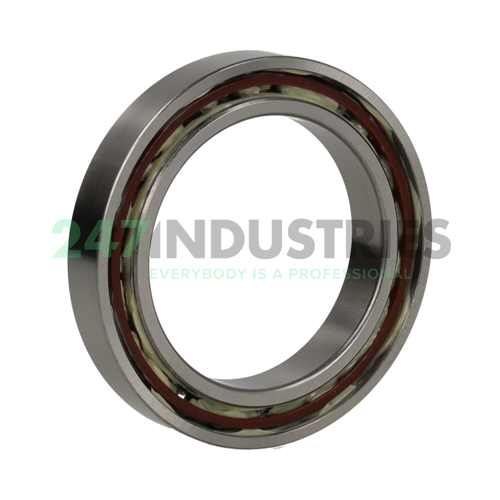

71910HV U J84 SNR

All dimensions

1. Inner (d) MM 50,00
2. Outer (D) MM 72,00
3. Width (B) MM 12,00
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 2.8346
6. Width (B) Inch 0.4724

Suffix description

1. H 25° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. U Universal Single Bearing
4. J84 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 8 Medium Preload

Technical details

1. Availability 1 pc
2. Brand SNR
3. Item number 71910HV U J84 SNR
4. Also known as 71910ACDGB/P4A

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.13

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
