71908CDGB/P4A SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 12
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.4724

Suffix description

1. CD 15° Contact Angle
2. GB Bearing For Paired Mounting In Random Order; When Arranged Back-To-Back Or Face-To-Face There Will Be A Moderate Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 71908CDGB/P4A SKF
4. Also known as SEB40 7 CE1 UM

5. EAN 7316570753271

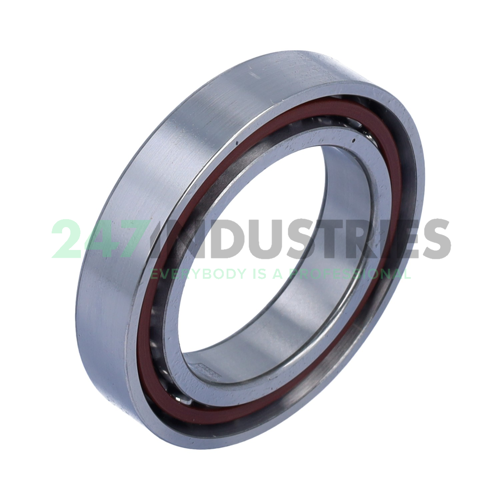

6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.11

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
