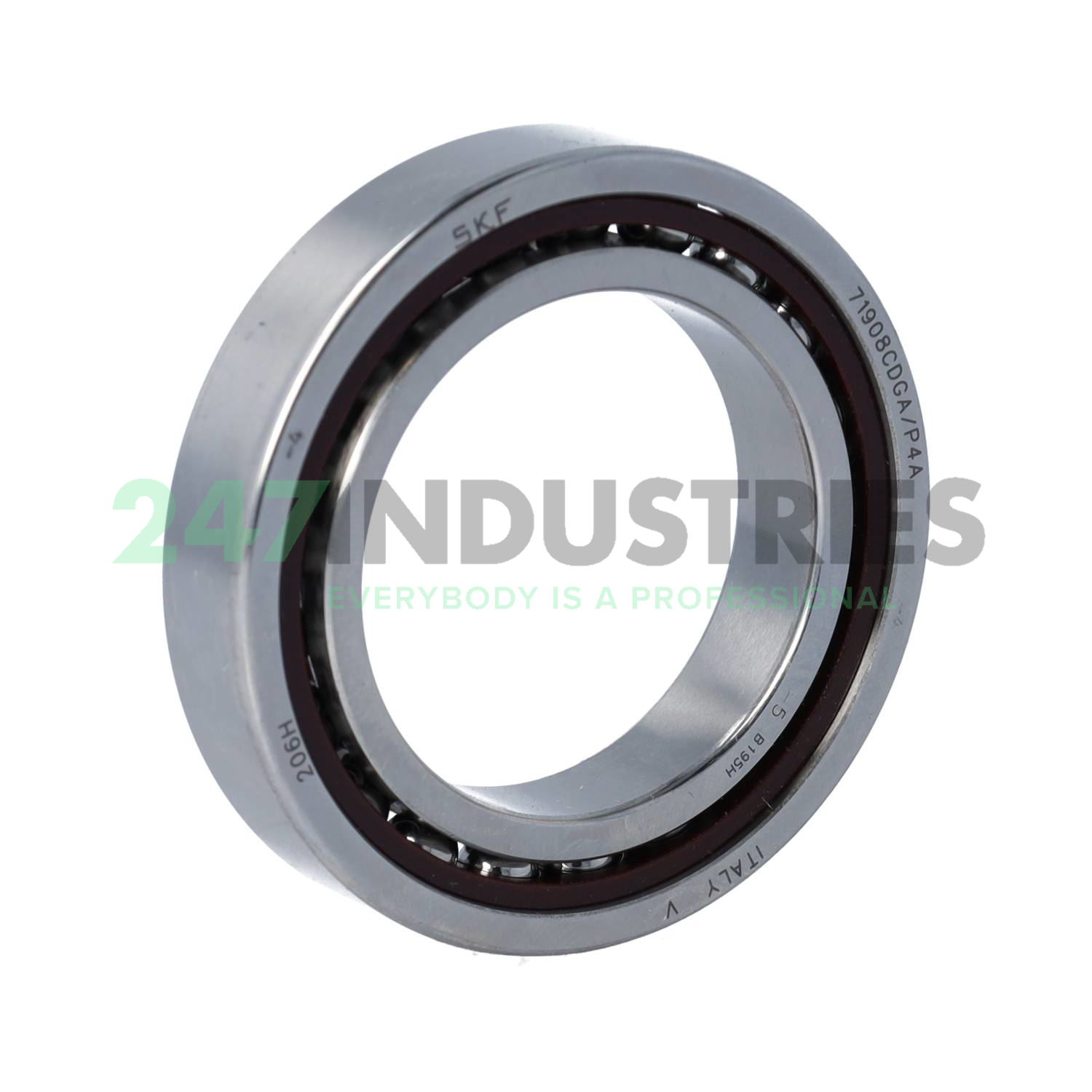

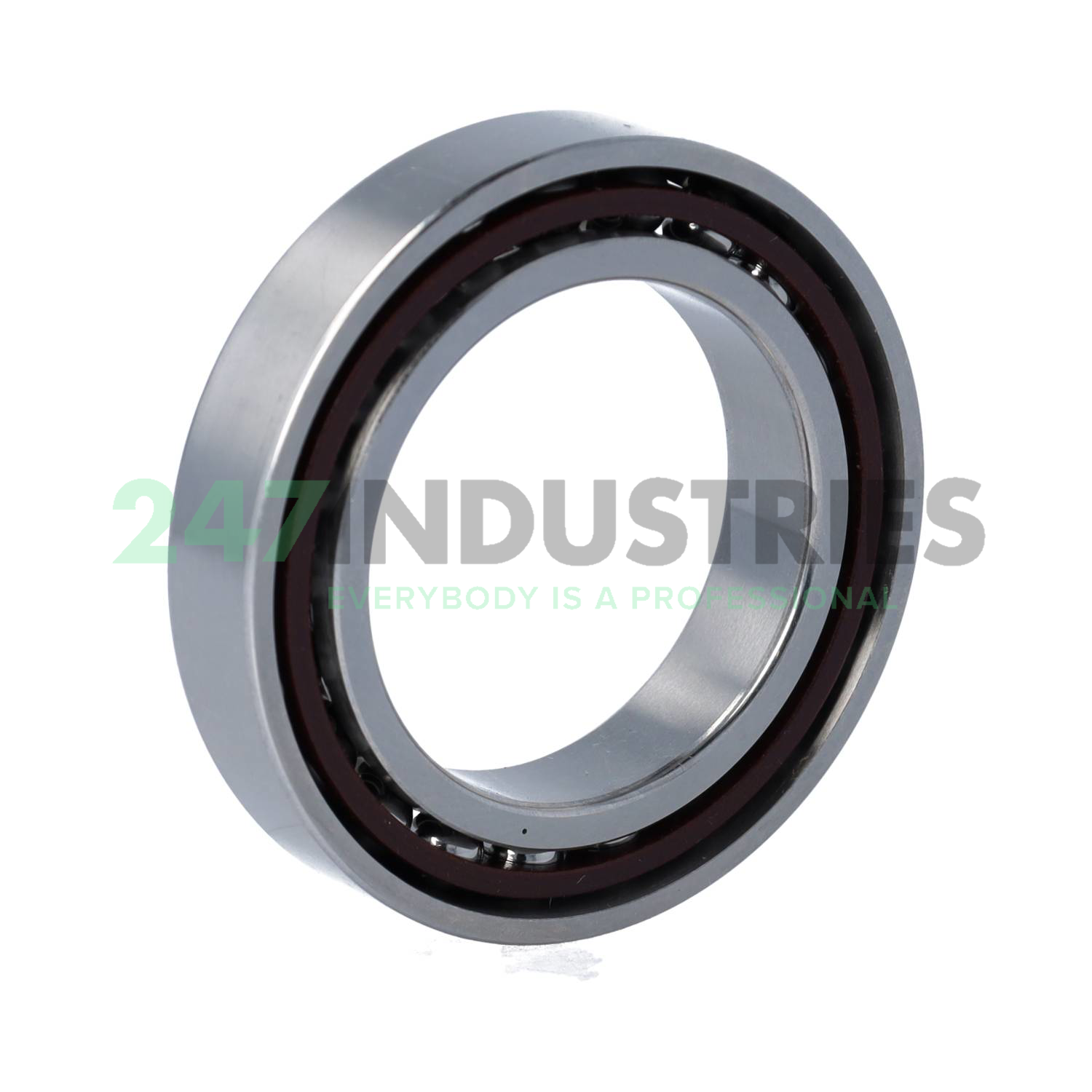

71908CDGA/P4A SKF

All dimensions

1. Inner (d) MM 40,00
2. Outer (D) MM 62,00
3. Width (B) MM 12,00
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.4724

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number 71908CDGA/P4A SKF
4. Also known as 1908HCUL
   2MMV9308WI CR SUL
   7908C T UL P4
   7908UC T1 G/GL P42
   B71908C.T.P4S.UL
   EB40 7CE1 UL
   SEB40 7CE1 UL

5. EAN 7316570041347
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.114

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
