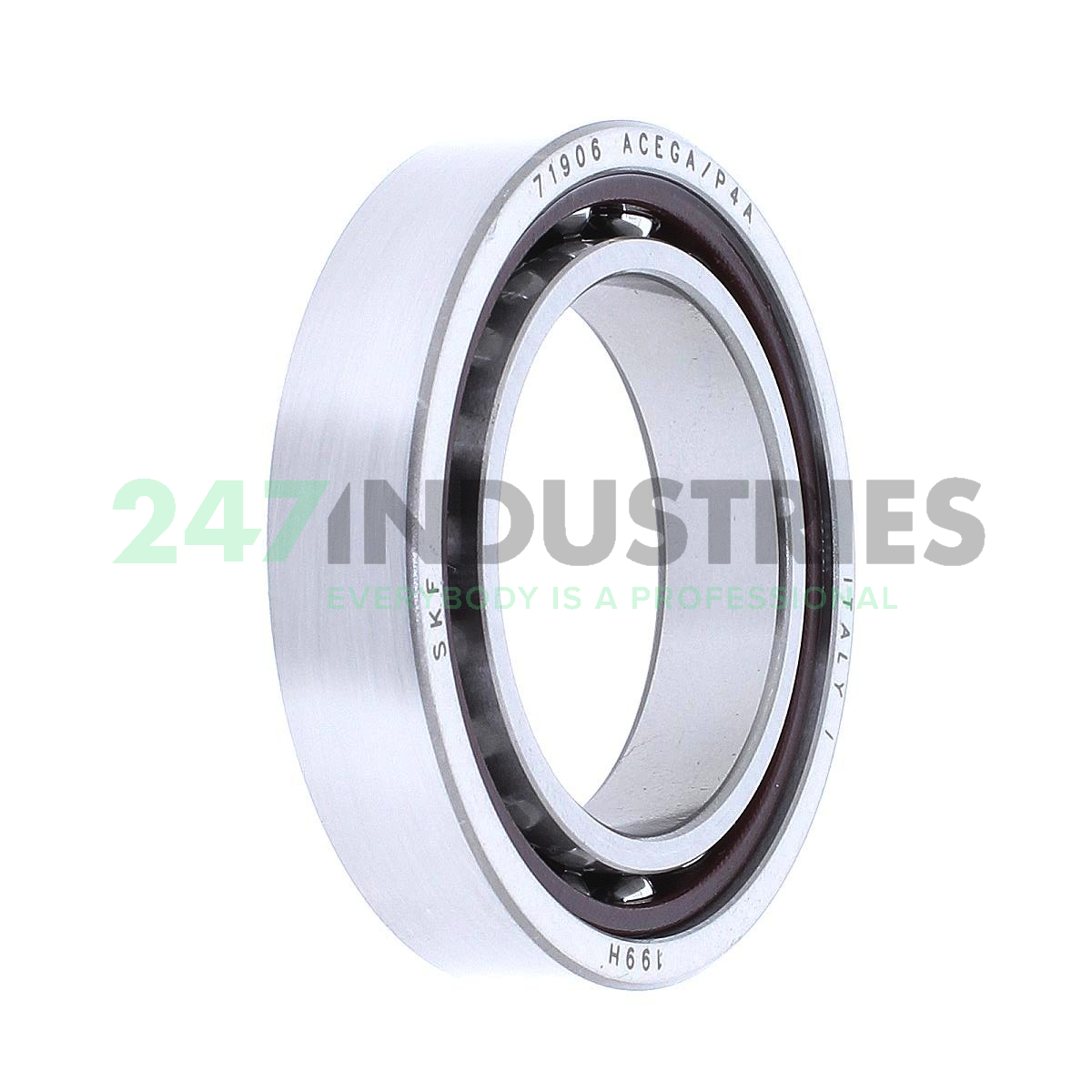

71906ACEGA/P4A SKF

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 47
3. Width (B) MM 9
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.3543

Suffix description

1. ACE 25° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number 71906ACEGA/P4A SKF
4. Also known as M71906-E-T-P4S-UL-XL

5. EAN 7316576001734
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.048

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
