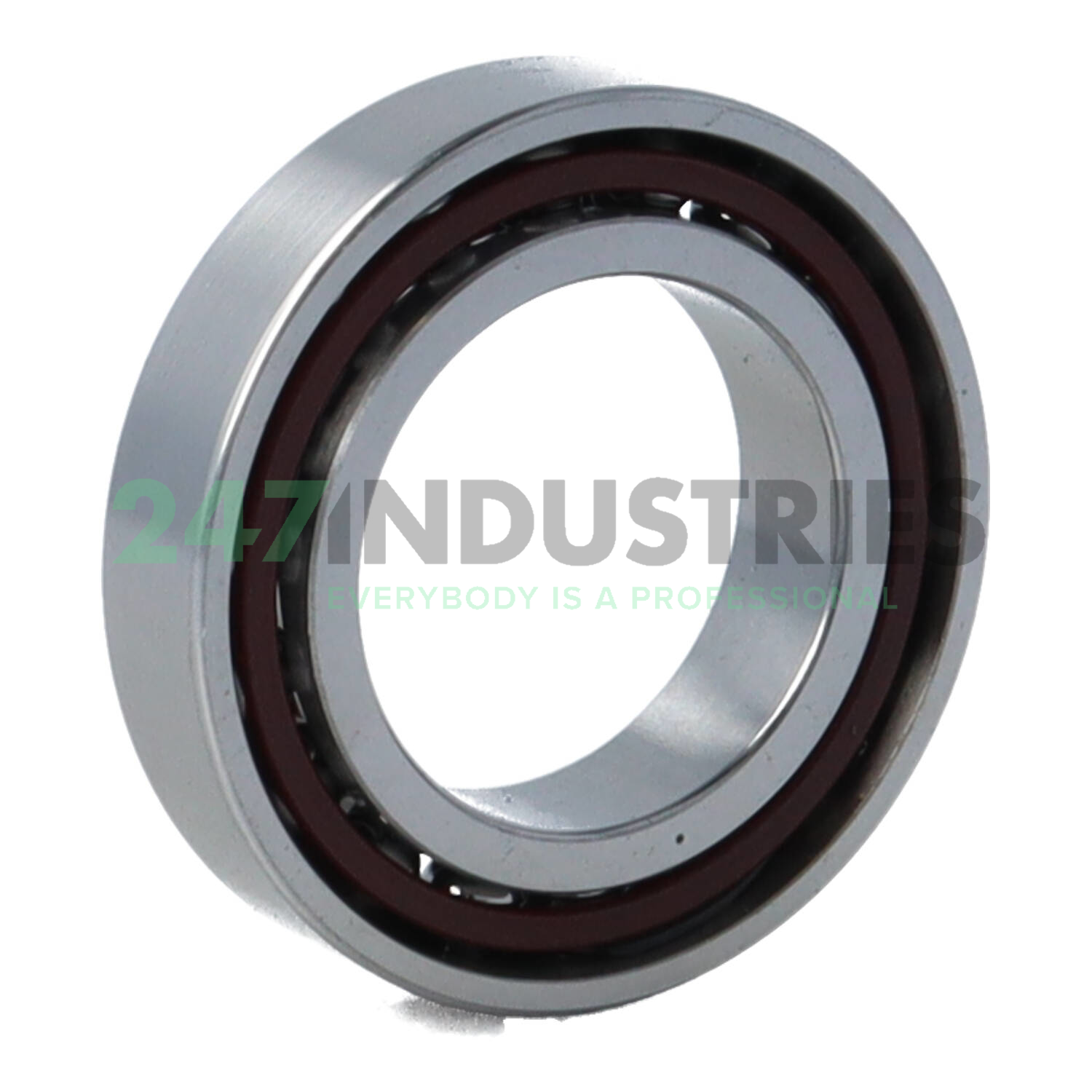

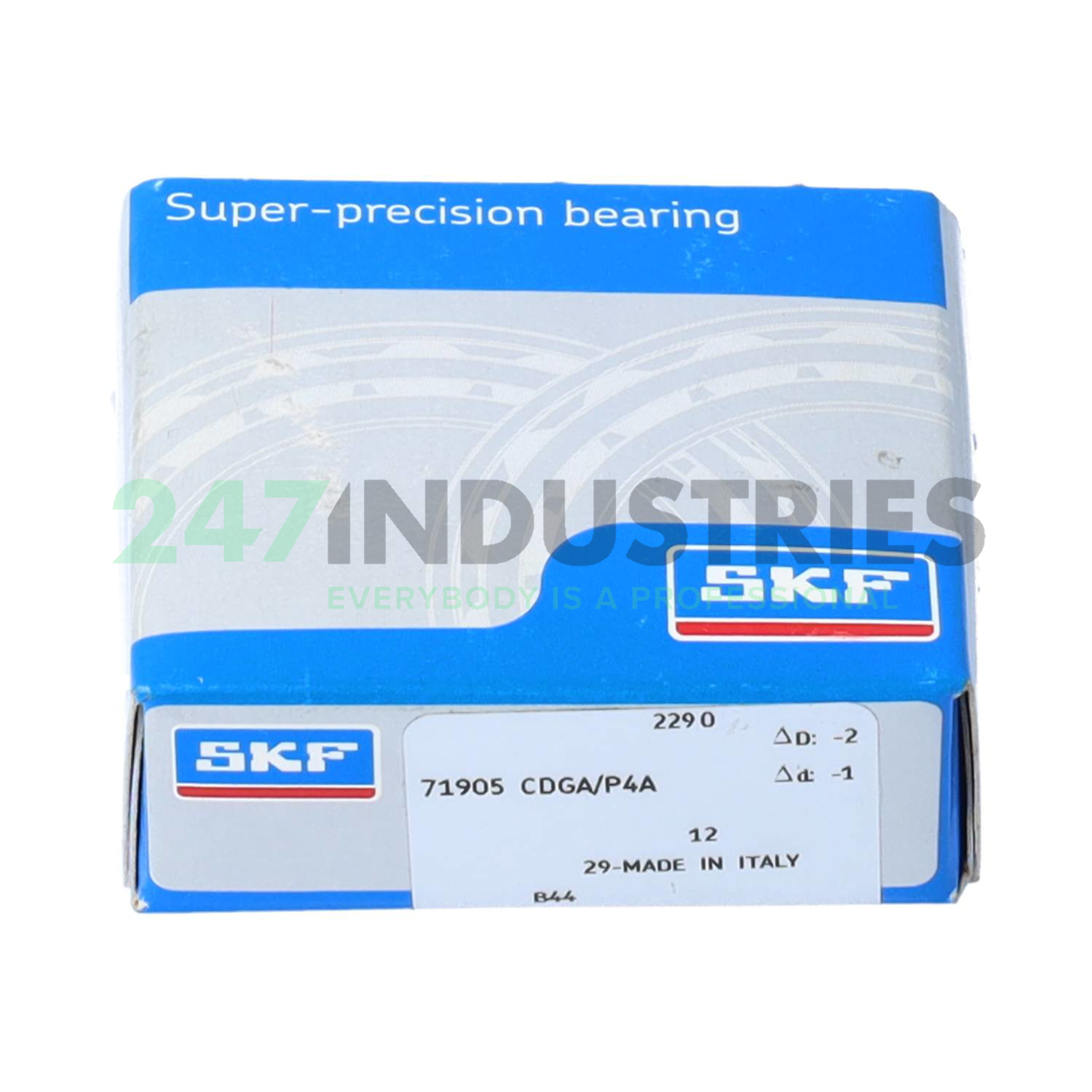

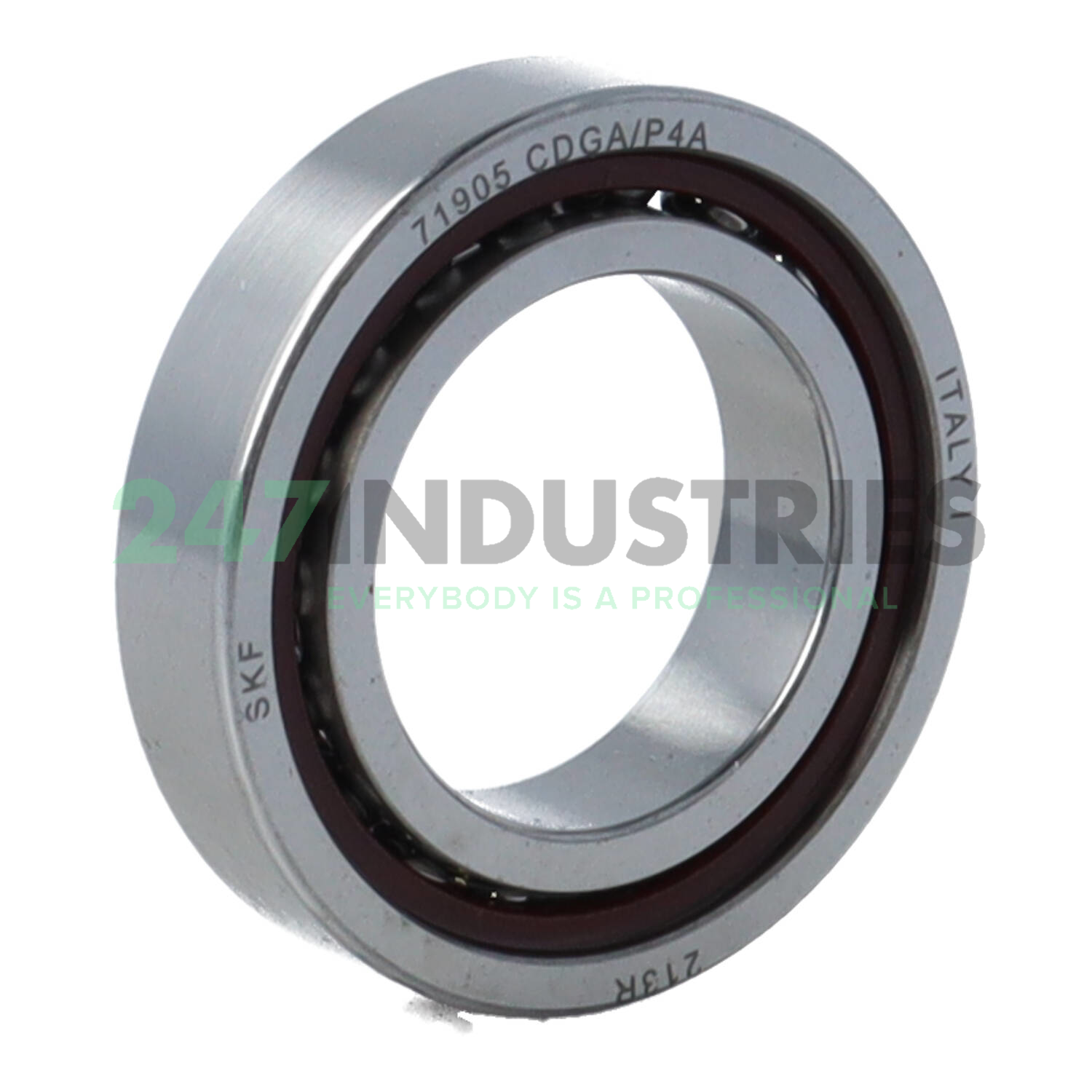

71905CDGA/P4A SKF

All dimensions

1. Inner (d) MM 25,00
2. Outer (D) MM 42,00
3. Width (B) MM 9,00
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.3543

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 7 pcs
2. Brand SKF
3. Item number 71905CDGA/P4A SKF
4. Also known as 1905HCUL
   2MM9305WI CR SUL
   7905UC T1 G/GL P42
   B71905C.T.P4S.UL
   B71905-C-T-P4S-UL
   EB25 7CE1 UL
   SEB25 7 CE1 UL

5. EAN 7316570356007
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.042

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
