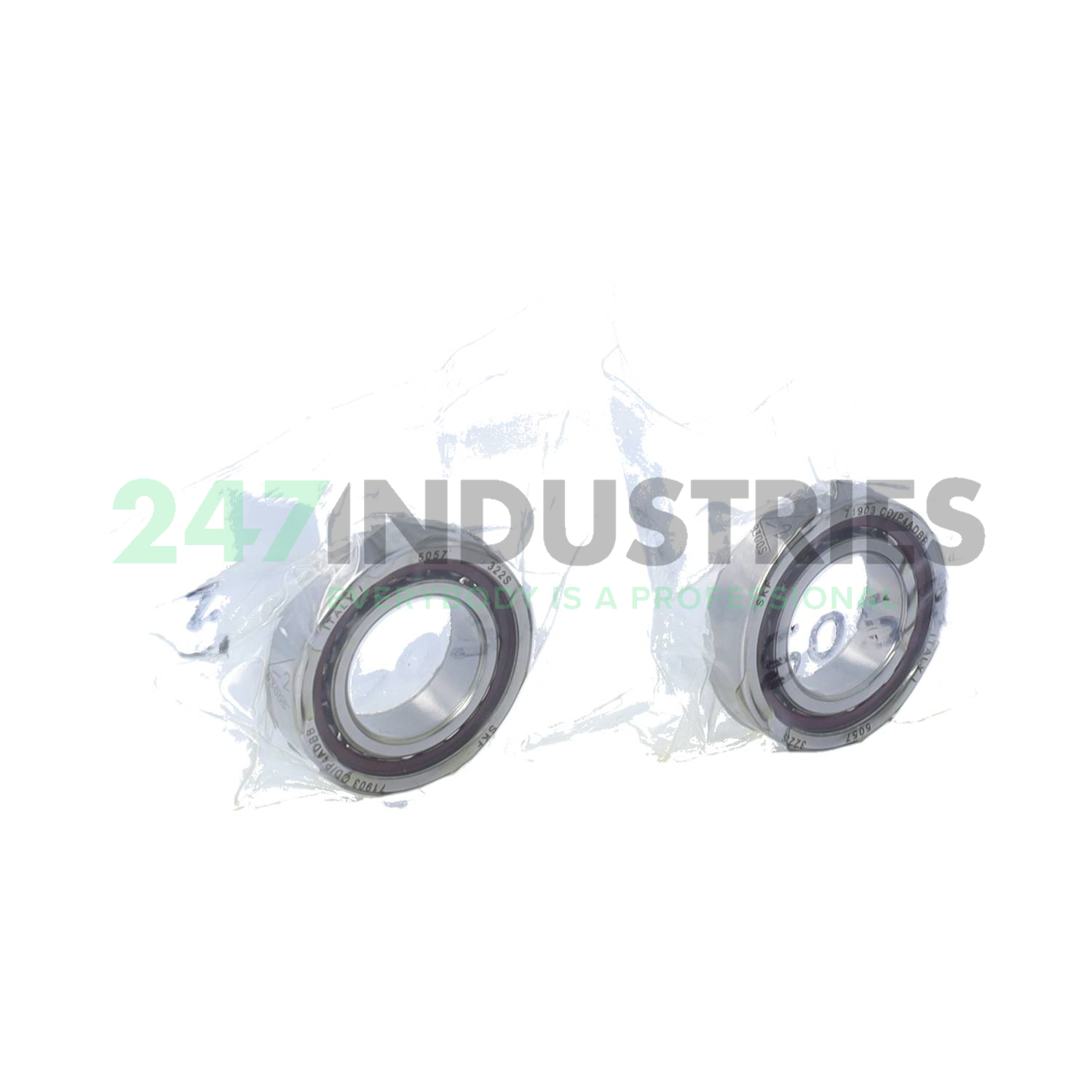

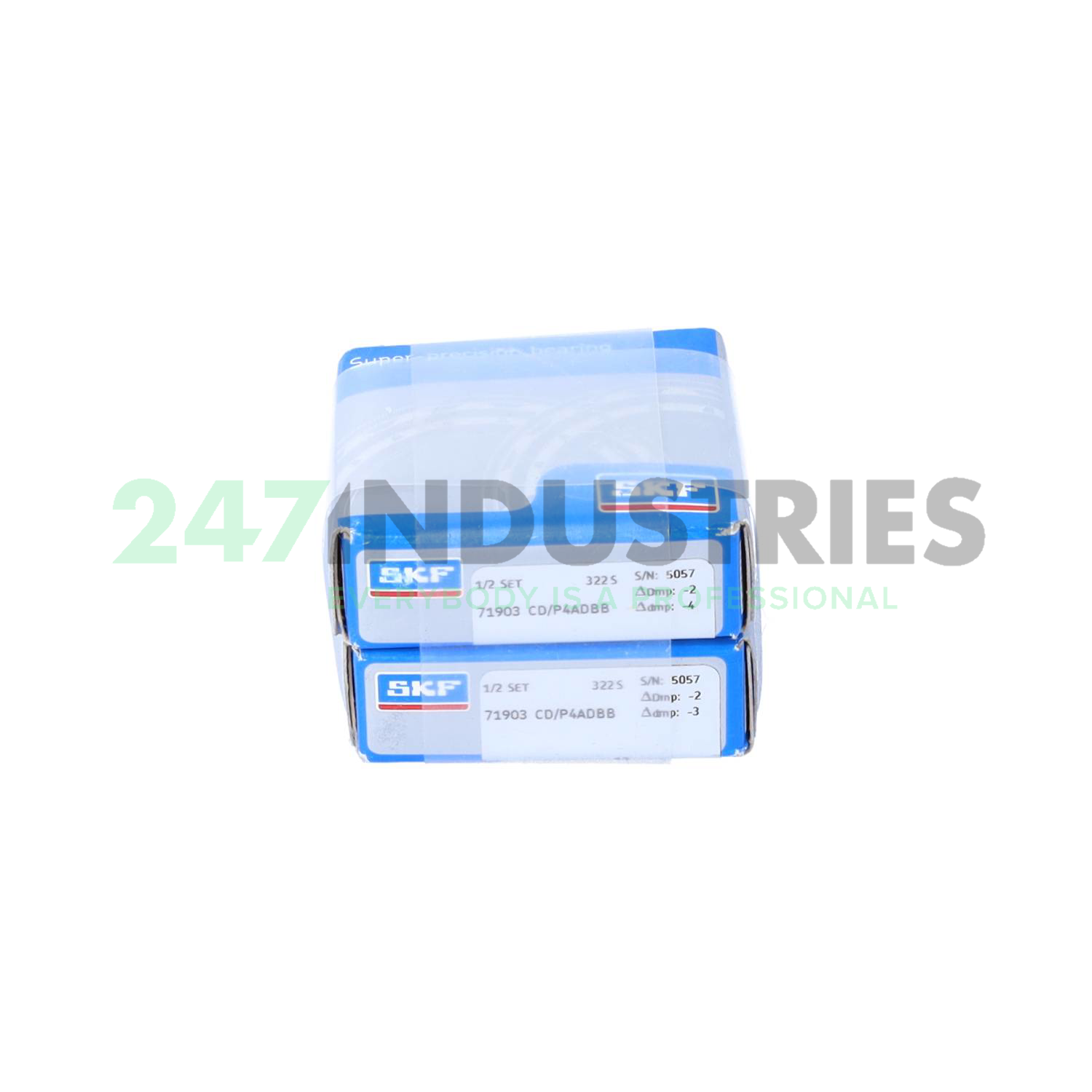

71903CD/P4ADBB SKF

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 30,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.5512

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DBB Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Back-To-Back Arrangement, Medium Preload

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 71903CD/P4ADBB SKF
4. EAN 7316570053838
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.034

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
