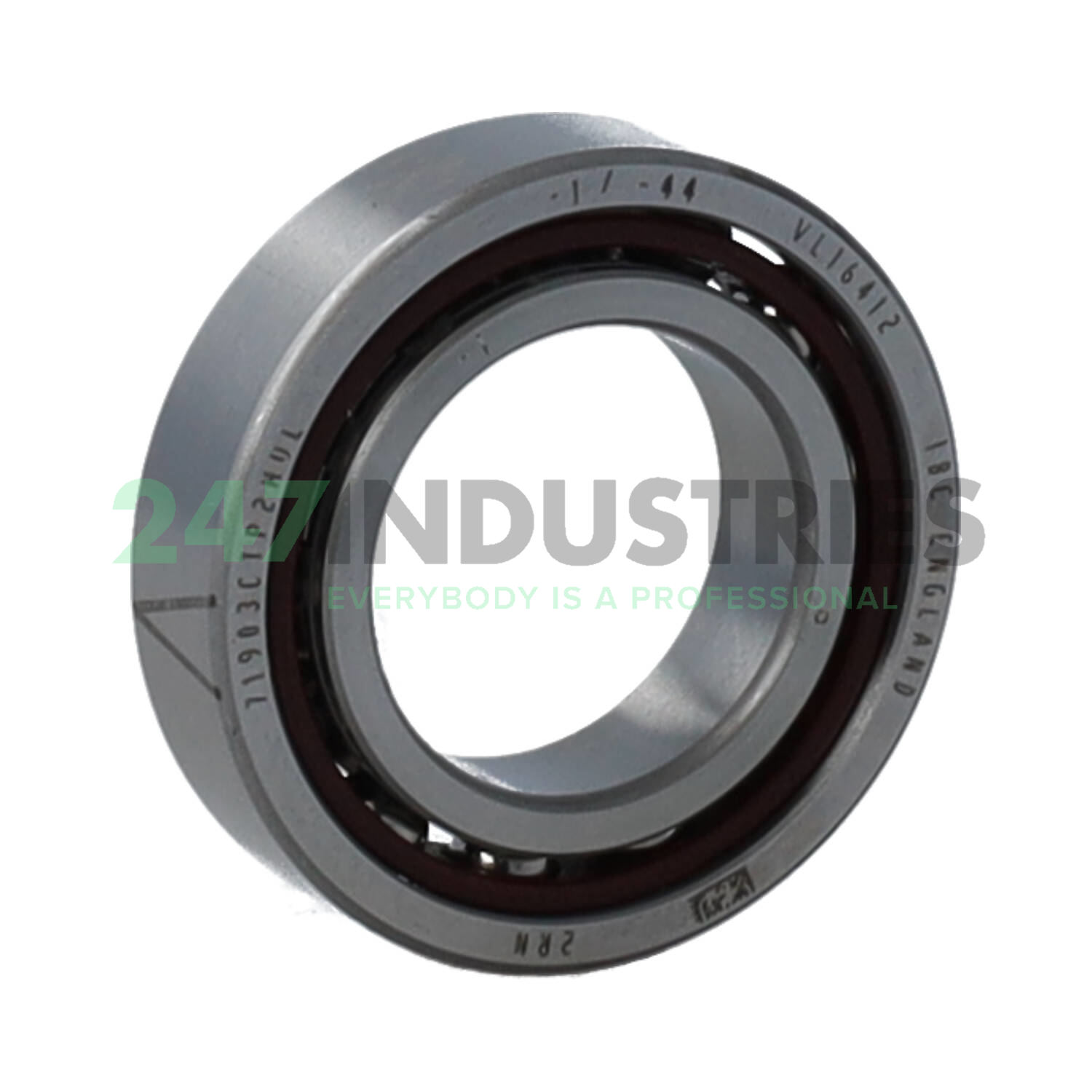

71903C T P2H UL IBC Bearings

All dimensions

1. Inner (d) MM 17,00
2. Outer (D) MM 30,00
3. Width (B) MM 7,00
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.1811
6. Width (B) Inch 0.2756

Suffix description

1. C 15° Contact Angle
2. T Cage Of Machined Phenolic Resin, Located On Rolling Elements
3. P2H Bearing With Extreme High Running Accuracy (Abec9) And Form Tolerance (Abec7)
4. UL GA (SKF)=Universal, Light Preload

Technical details

1. Availability 0 pcs
2. Brand IBC Bearings
3. Item number 71903C T P2H UL IBC Bearings

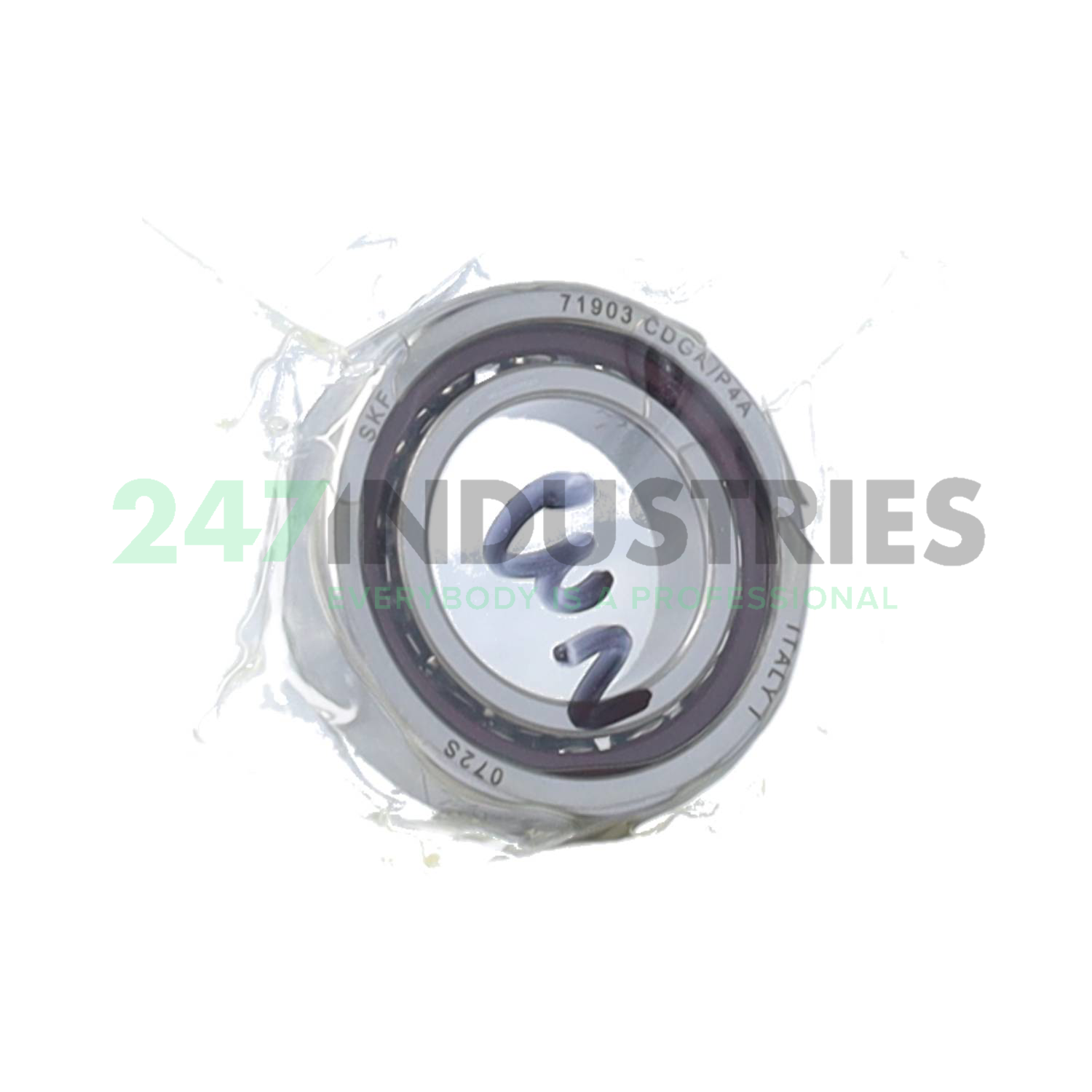

4. Also known as 71903CDGA/P4A
   SEB17 7 CE1 UL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.017

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
