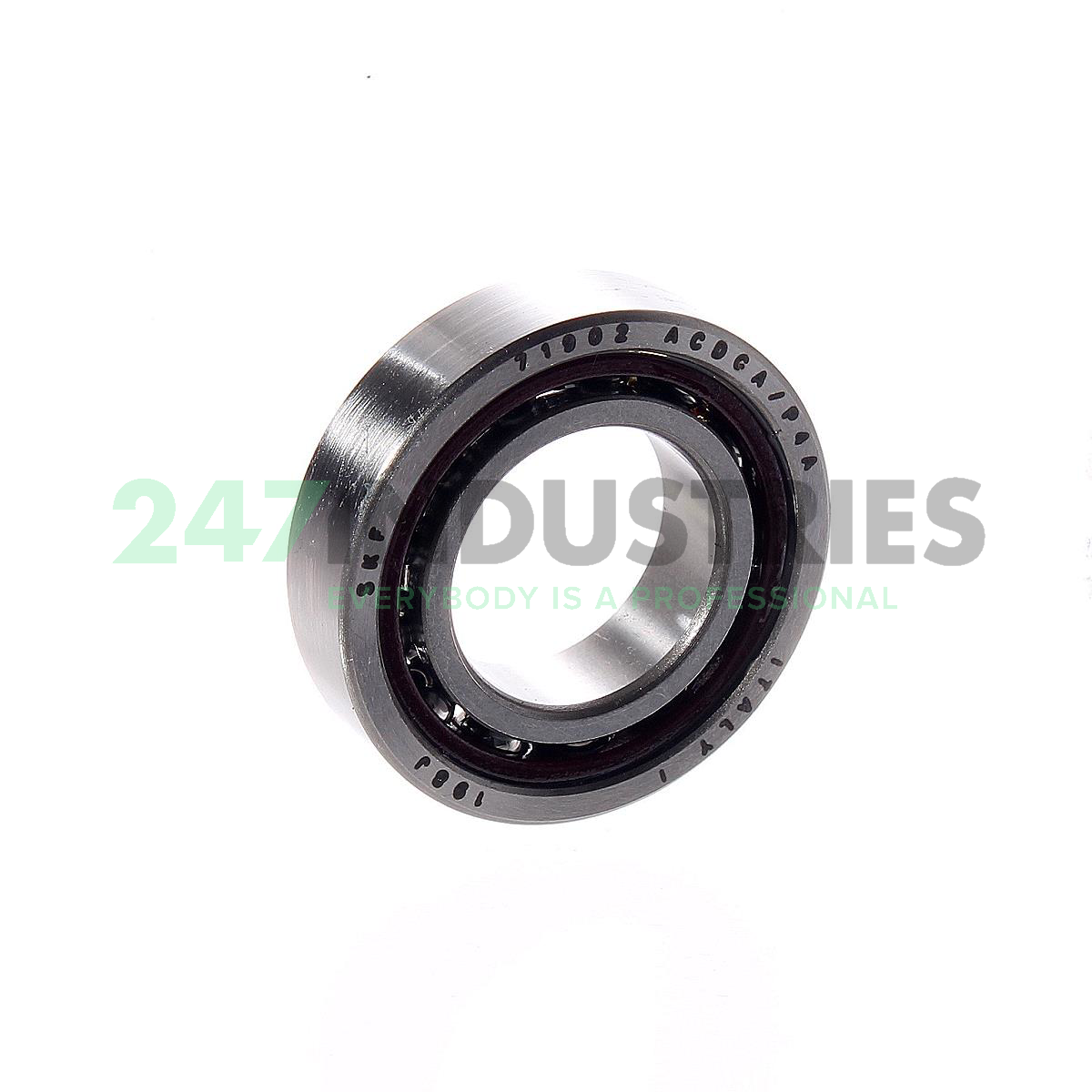

71902ACDGA/P4A SKF

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 28,00
3. Width (B) MM 7,00
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.2756

Suffix description

1. ACD 25° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number 71902ACDGA/P4A SKF
4. Also known as 1902HEUL
   3MM9302WI CR SUL
   7902UAD T1 G/GL P42
   B71902E.T.P4S.UL
   SEB15 7CE3 UL

5. EAN 7316570854404
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.015

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
