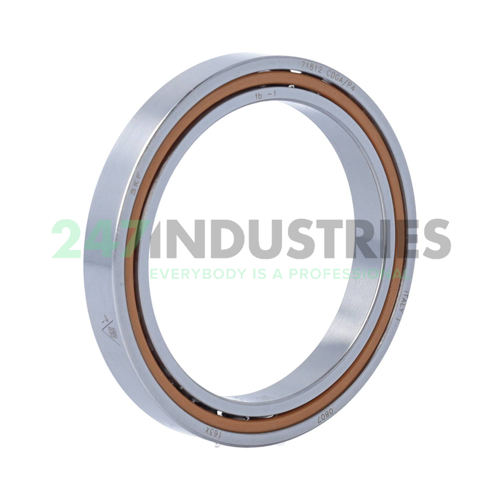

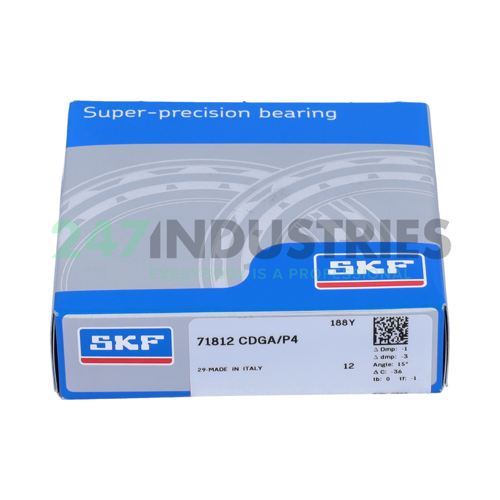

71812CDGA/P4 SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 78
3. Width (B) MM 10
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.0709
6. Width (B) Inch 0.3937

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4 Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 71812CDGA/P4 SKF
4. Also known as B71812-C-TPA-P4-UL

5. EAN 7316574367634
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.1

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
