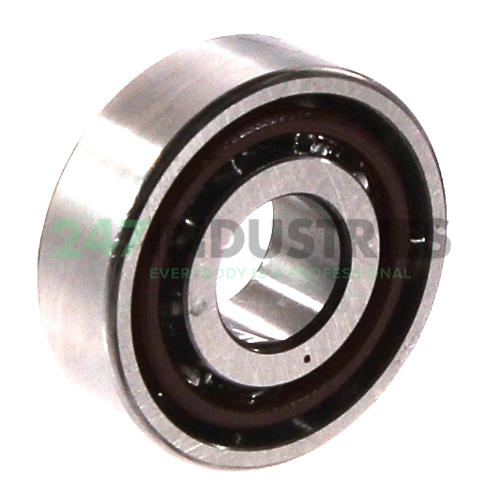

708CDGA/P4A SKF

All dimensions

1. Inner (d) MM 8
2. Outer (D) MM 22
3. Width (B) MM 7
4. Inner (d) Inch 0.315
5. Outer (D) Inch 0.8661
6. Width (B) Inch 0.2756

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 12 pcs
2. Brand SKF
3. Item number 708CDGA/P4A SKF
4. Also known as B708-C-T-P4S-UL
   VEX8 7CE1 UL

5. EAN 7316570520132
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.011

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
