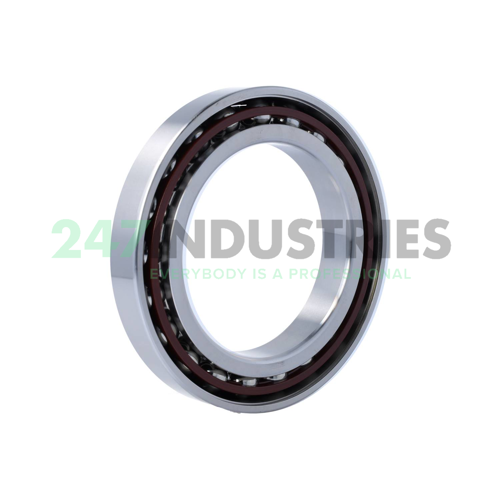

7021.E.T.P4.UL IBC Bearings

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 160
3. Width (B) MM 26
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.0236

Suffix description

1. E 25° Contact Angle
2. T Textile Laminated Phenolic Resin, Outer Ring Guided. The Cage Is Suitable For Long-Term Operation At Temperatures Up To 100°C
3. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-ABEC.7
4. UL Single Bearing, Universal, Light Preload

Technical details

1. Availability 2 pcs
2. Brand IBC Bearings
3. Item number 7021.E.T.P4.UL IBC Bearings
4. Also known as 7021ACDGA/P4A
   7021E TPA P2H UL
   B7021-E-T-P4S-UL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.6

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
