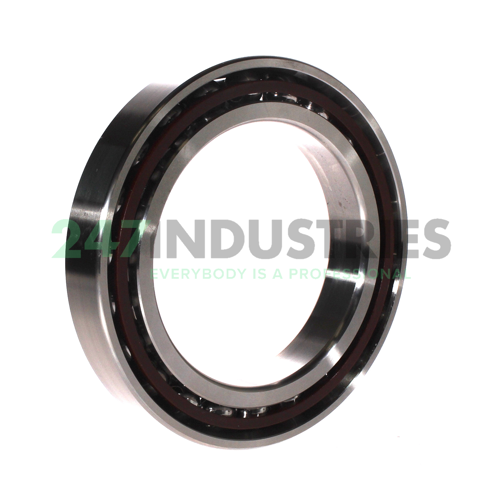

7021.E.T.P2H.UM IBC Bearings

All dimensions

1. Inner (d) MM 105
2. Outer (D) MM 160
3. Width (B) MM 26
4. Inner (d) Inch 4.1339
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.0236

Suffix description

1. E 25° Contact Angle
2. T Cage Of Machined Phenolic Resin, Located On Rolling Elements
3. P2H Bearing With Extreme High Running Accuracy (Abec9) And Form Tolerance (Abec7)
4. UM Single Bearing, Universal, Medium Preload

Technical details

1. Availability 3 pcs
2. Brand IBC Bearings
3. Item number 7021.E.T.P2H.UM IBC Bearings
4. Also known as 7021ACDGB/P4A

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.6

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
