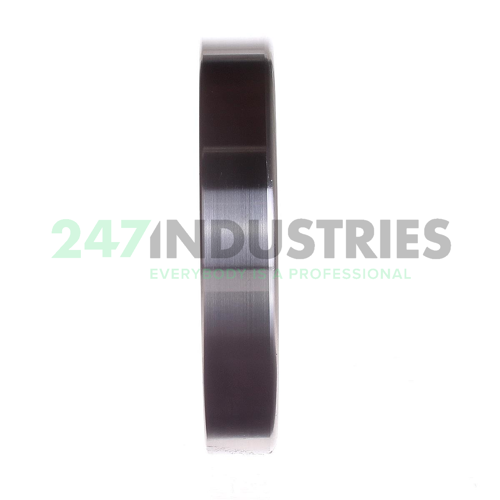

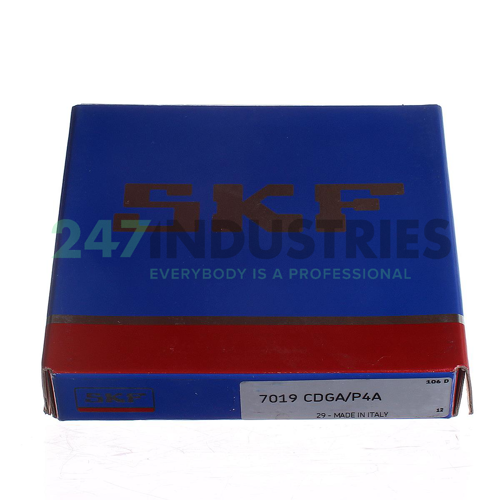

7019CDGA/P4A SKF

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 145
3. Width (B) MM 24
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 5.7087
6. Width (B) Inch 0.9449

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7019CDGA/P4A SKF
4. Also known as 119HCUL
   2MM9119WI CR SUL
   7019 C TR SUL P3
   7019UC T1 G/GL P42
   B7019C.T.P4S.UL
   EX95 7CE1 UL

5. EAN 7316571134154
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.2

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
