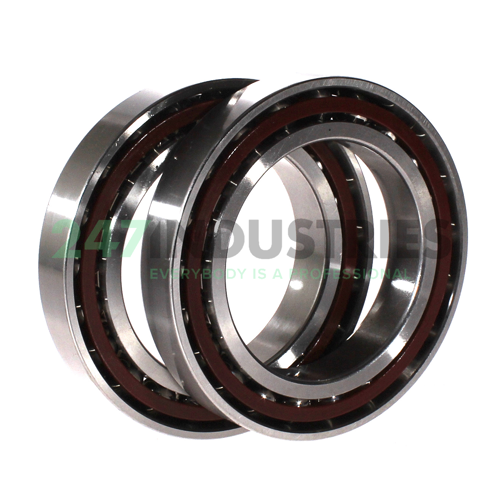

7017CD/P4ADGA SKF

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 130
3. Width (B) MM 44
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.7323

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DGA Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.e. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Light Preload

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 7017CD/P4ADGA SKF
4. Also known as 7017C T DUL P4

5. EAN 7316576625756
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.78

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
