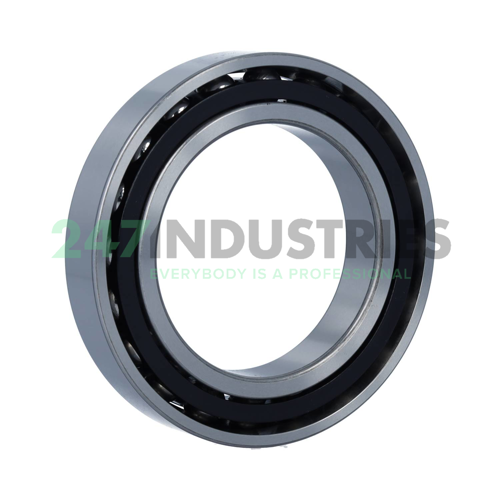

7016CG/GNUP-12 NTN

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 22
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 0.8661

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. C 15˚ Contact Angle
3. G Single Bearings, Flush Ground Universal Mounting
4. GN Normal Preload. UP-Ultra Precision
5. -12 Unknown

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 7016CG/GNUP-12 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.857

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision UP (Ultra Precision)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
