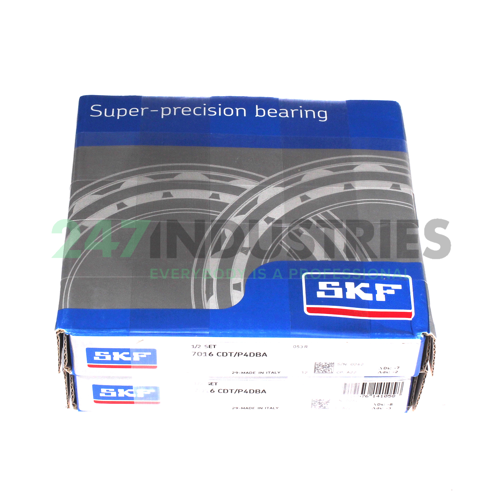

7016CDT/P4DBA SKF

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 125
3. Width (B) MM 44
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.7323

Suffix description

1. CD 15° Contact Angle
2. T Polyamide Cage
3. P4 Dimensional And Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5) (Interchangeable Up > 80mm)
4. DBA Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Back-To-Back Arrangement, Light Preload

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number 7016CDT/P4DBA SKF
4. EAN 7316576141058
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.7

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
