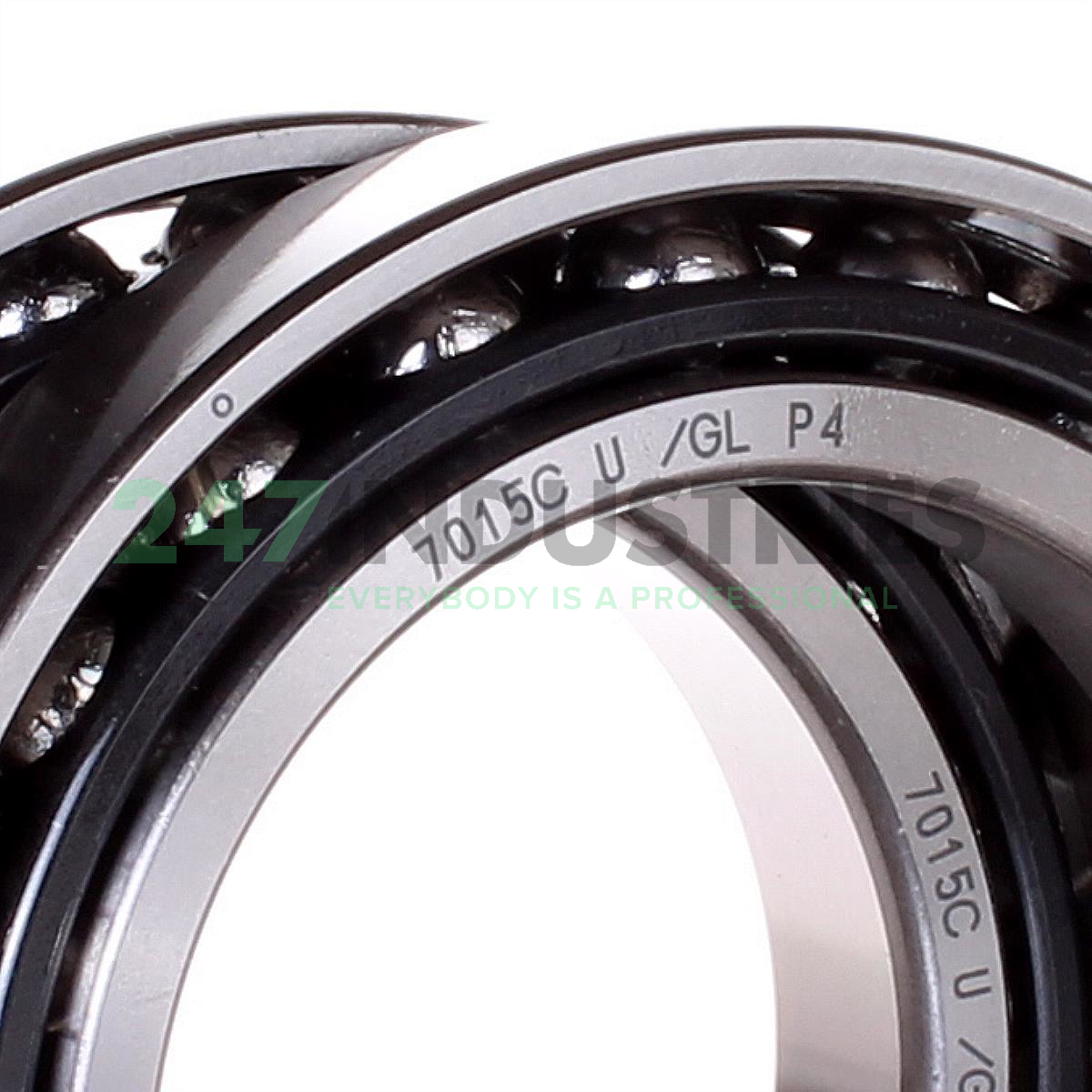

7015CY DU GL P4 Nachi

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 115
3. Width (B) MM 40
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 4.5276
6. Width (B) Inch 1.5748

Suffix description

1. C 15° Contact Angle
2. Y Polyamide Cage
3. DU Flush Ground (Duplex)
4. GL Light Preload
5. P4 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7

Technical details

1. Availability 0 pcs
2. Brand Nachi
3. Item number 7015CY DU GL P4 Nachi
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.24

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
