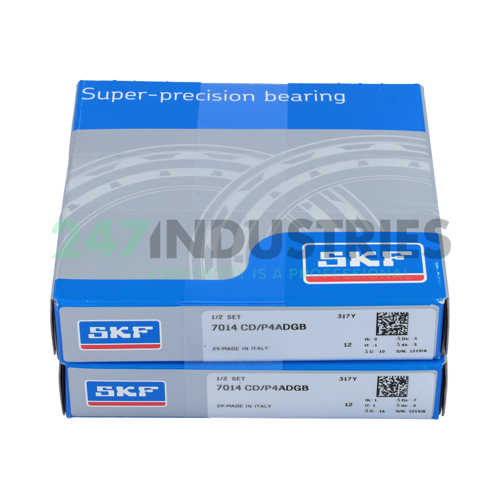

7014CD/P4ADGB SKF

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 110
3. Width (B) MM 40
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.5748

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DGB Two Single Row Angular Contact Ball Bearings For Universal Pairing, I.E. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement, Moderate Preload

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number 7014CD/P4ADGB SKF
4. EAN 7316576626722
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 1.18

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DM - 2 Univ Bearings Medium Pre
7. Lubrication Standard Lubrication
