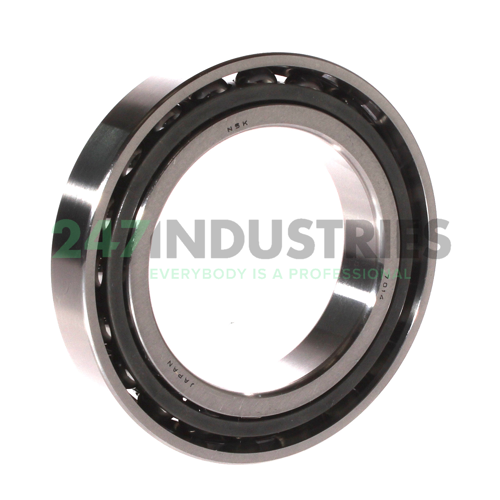

7014ATYNP5 NSK

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 110
3. Width (B) MM 20
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.3307
6. Width (B) Inch 0.7874

Suffix description

1. A 30° Contact Angle
2. TYN This Special Design Allows The Bearing To Have Lower Friction And Lower Noise. The Temperature Rise Of The Bearing With A TYN Cage Is Lower Than That With A Phenolic Cage At A Rotational Speed Lower Than 1.4 Million DmN* ("Dm
3. N Pitch Circle Diameter Of Rolling Elements (mm)" x "Speed" (Min-1"))
4. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7014ATYNP5 NSK
4. Also known as 7014ATYN

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.59

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P5 Precision (Higher than P6)
4. Contact Angle 30 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
