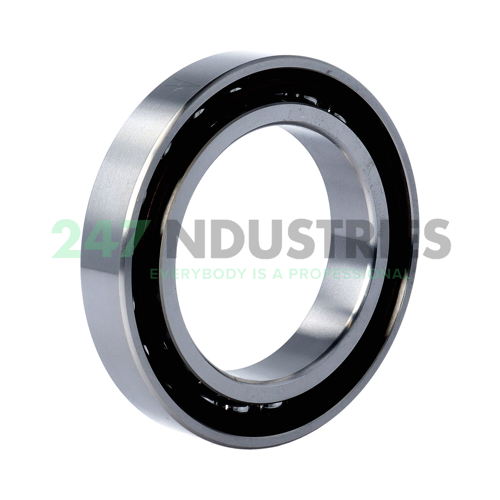

7013CTRSUMP3 NSK

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 100
3. Width (B) MM 18
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.7087

Suffix description

1. C 15° Contact Angle
2. TR Outer Ring Guided Phenolic Cage
3. SUM Single Bearings, Medium Preload
4. P3 Dimensional Accuracy P4, Running Accuracy P2

Technical details

1. Availability 2 pcs
2. Brand NSK
3. Item number 7013CTRSUMP3 NSK
4. EAN 00029176620546
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.42

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
