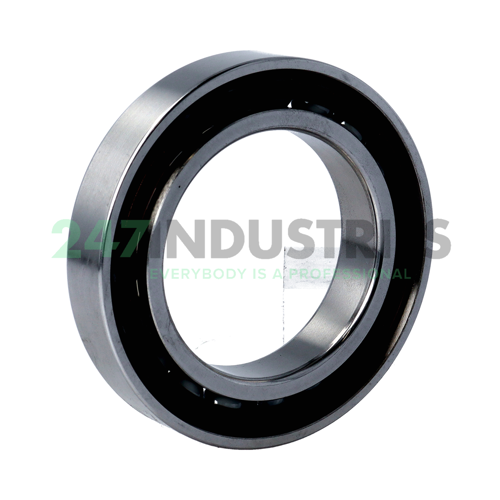

7012ACDGC/HCP4A SKF

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 95
3. Width (B) MM 18
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 3.7402
6. Width (B) Inch 0.7087

Suffix description

1. ACD 25° Contact Angle
2. GC Bearing For Paired Mounting In Random Order; When Arranged Back-To-Back Or Face-To-Face There Will Be A Heavy Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 24 pcs
2. Brand SKF
3. Item number 7012ACDGC/HCP4A SKF
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.4

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GC - Heavy Preload
7. Lubrication Standard Lubrication
