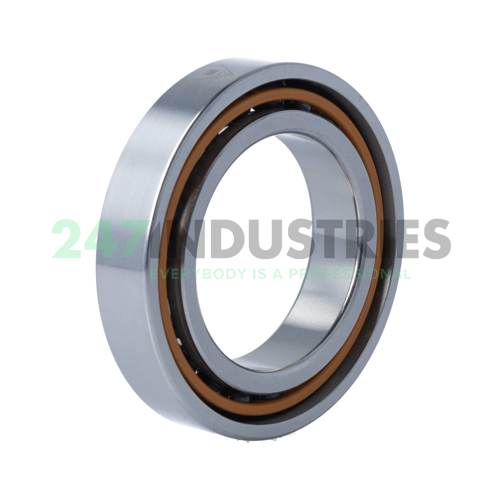

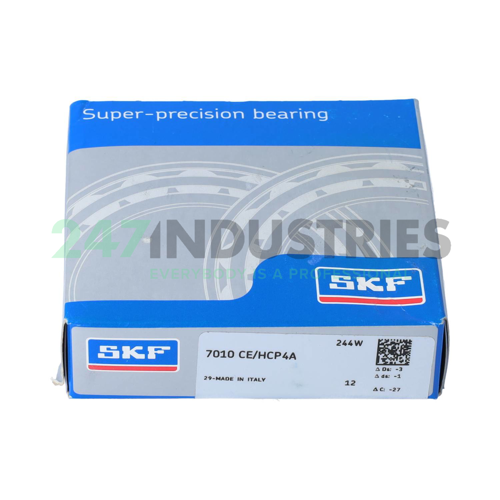

7010CE/HCP4A SKF

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 80
3. Width (B) MM 16
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.6299

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. HC Bearing Or Bearing Components Of Ceramic
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 0 pcs
2. Brand SKF
3. Item number 7010CE/HCP4A SKF
4. Also known as HCM7010-C-T-P4S-UL-XL
   VCM7010-C-T-P4S-UL-XL

5. EAN 7316571281827
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.23

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15° Contact High Speed Design
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
