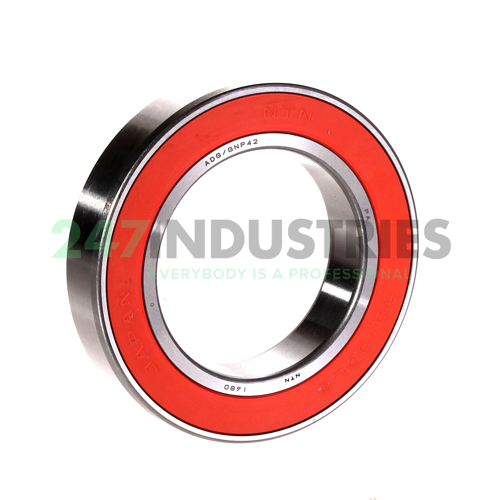

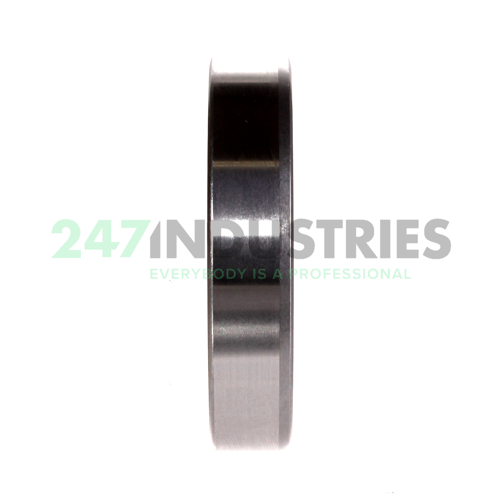

7010ADLLBG/GNP42/L749 NTN

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 80
3. Width (B) MM 16
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.6299

Suffix description

1. AD Contact Angle 25º,
2. LLB 2RU-Seals (Non Contact Type)
3. G Single Bearings, Flush Ground Universal Mounting
4. GN Normal Preload,
5. P42 Dimensional Accuracy = JIS Class 4 (P4), Running Accuracy = JIS Class 2 (C2)
6. L749 Special Grease, Low Temperature, Range -50 ~ 120 °C

Technical details

1. Availability 52 pcs
2. Brand NTN
3. Item number 7010ADLLBG/GNP42/L749 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.262

Product Properties

1. Seal 2RU - Two Seals / Non Contact Type
2. Cage Type P - Plastic Molded Cage
3. Precision Dim. Acc. P4, Run. Acc. P2
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Low Temperature Grease
