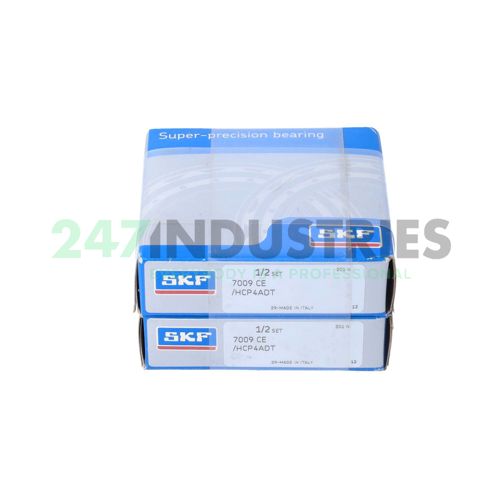

7009CE/HCP4ADT SKF

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 75
3. Width (B) MM 32
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 1.2598

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. HC Bearing Or Bearing Components Of Ceramic
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
4. DT Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Tandem Arrangement

Technical details

1. Availability 5 pcs
2. Brand SKF
3. Item number 7009CE/HCP4ADT SKF
4. EAN 7316571556826
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.46

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15° Contact High Speed Design
5. Pairing DT - Tandem Arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
