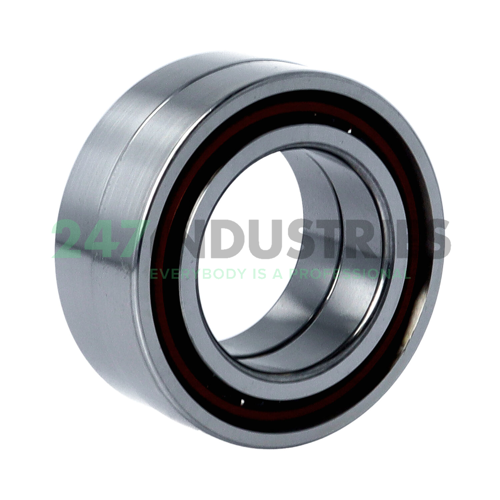

7008CE/HCP4ADGA SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 30
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 1.1811

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. HC Bearing Or Bearing Components Of Ceramic
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

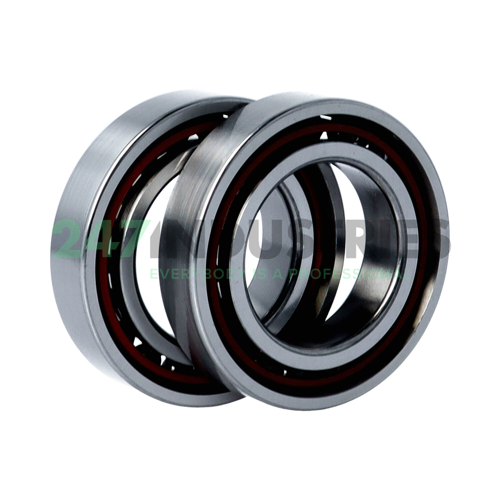

4. DGA Two Single Row Angular Contact Ball Bearings For Universal Pairing, i.e. Paired For Mounting In A Back-To-Back, Face-To-Face Or Tandem Arrangement. Light Preload

Technical details

1. Availability 2 pcs
2. Brand SKF
3. Item number 7008CE/HCP4ADGA SKF
4. Also known as HCM7008-C-P4S-DUL
   HCM7008-C-P4S-DUL-XL
   VEX40/NS 7 CE1 DUL

5. EAN 7316571652894
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.34

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
