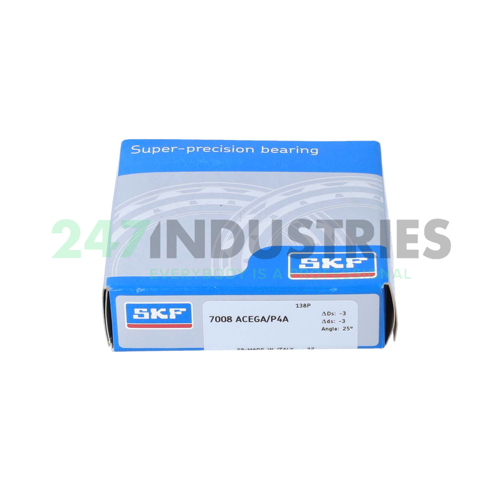

7008ACEGA/P4A SKF

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 68
3. Width (B) MM 15
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.6772
6. Width (B) Inch 0.5906

Suffix description

1. ACE 25° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 10 pcs
2. Brand SKF
3. Item number 7008ACEGA/P4A SKF
4. Also known as 3MMV9108HX CR SUL
   HS7008E.T.P4S.UL
   VEX40 7CE3 UL
   ZSB108HEUL

5. EAN 7316572133736
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.19

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
