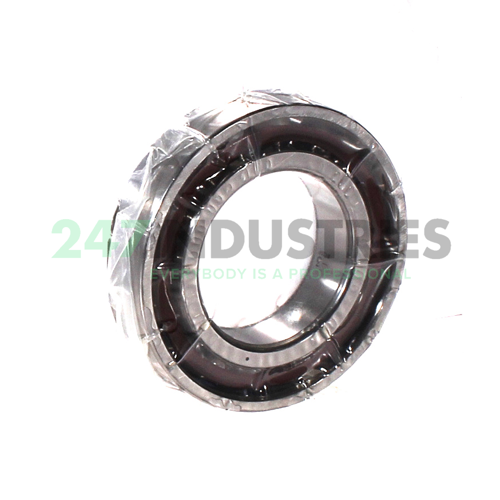

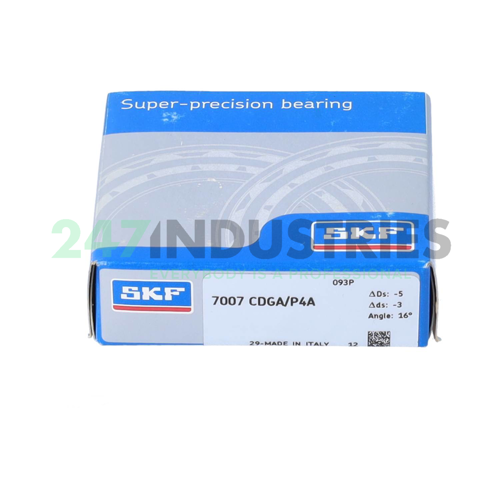

7007CDGA/P4A SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 14
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5512

Suffix description

1. CD 15° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 13 pcs
2. Brand SKF
3. Item number 7007CDGA/P4A SKF
4. Also known as 107HCUL
   2MMV9107WI CR SUL
   2MMV9107WI CR UL
   B7007C.T.P4S.UL
   B7007-C-T-P4S-UL
   EX35 7CE1 UL

5. EAN 7316570165050
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
