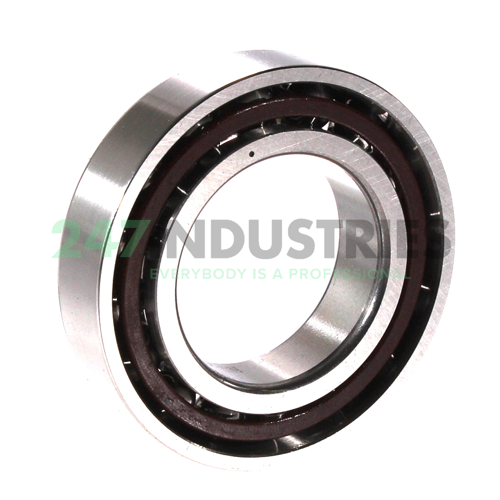

7007ACDGB/P4A SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 14
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5512

Suffix description

1. ACD 25° Contact Angle
2. GB Bearing For Paired Mounting In Random Order; When Arranged Back-To-Back Or Face-To-Face There Will Be A Moderate Preload
3. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 10 pcs
2. Brand SKF
3. Item number 7007ACDGB/P4A SKF
4. Also known as 7007X3 TA SUM EP7
   B7007-E-T-P4S-UM

5. EAN 7316570208337
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
