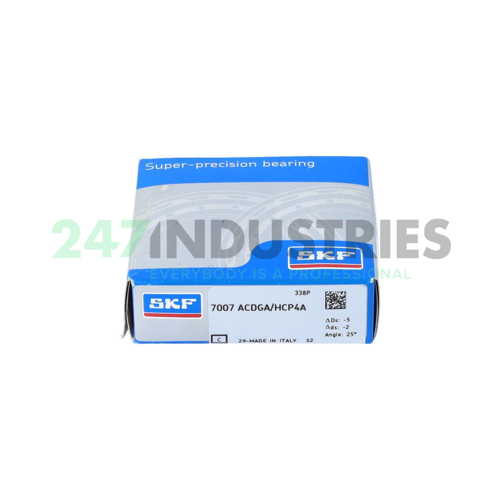

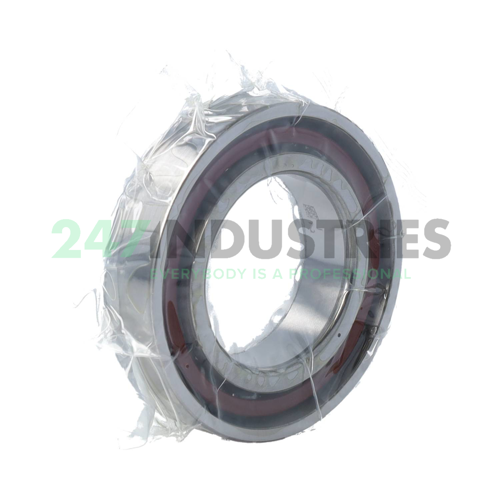

7007ACDGA/HCP4A SKF

All dimensions

1. Inner (d) MM 35
2. Outer (D) MM 62
3. Width (B) MM 14
4. Inner (d) Inch 1.378
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.5512

Suffix description

1. ACD 25° Contact Angle
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 3 pcs
2. Brand SKF
3. Item number 7007ACDGA/HCP4A SKF
4. Also known as 3MMC9107WI CR SUL
   5S-7007UAD T1 G/GL P42
   7007 A5 SN24 TR SUL P3
   C107HEUL
   EX35/NS 7CE3 UL
   HCB7007E.T.P4S.UL
   HCB7007-E-T-P4S-UL

5. EAN 7316570085617
6. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 25 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
