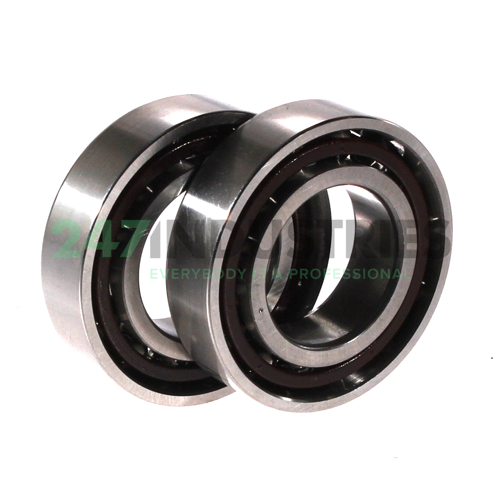

7005CD/P4ADBG20 SKF

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 47
3. Width (B) MM 24
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.9449

Suffix description

1. CD 15° Contact Angle
2. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4
3. DBA Two Single Row Deep Groove Ball Bearings, Single Row Angular Contact Ball Bearings Or Single Row Tapered Roller Bearings Matched For Mounting In A Back-To-Back Arrangement
4. G20 The Number Is The Mean Preload Value Of The Set Expressed In daN

Technical details

1. Availability 1 pc
2. Brand SKF
3. Item number 7005CD/P4ADBG20 SKF
4. EAN 7316575937638
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.15

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload DU - 2 Pair, Universally Ground
7. Lubrication Standard Lubrication
