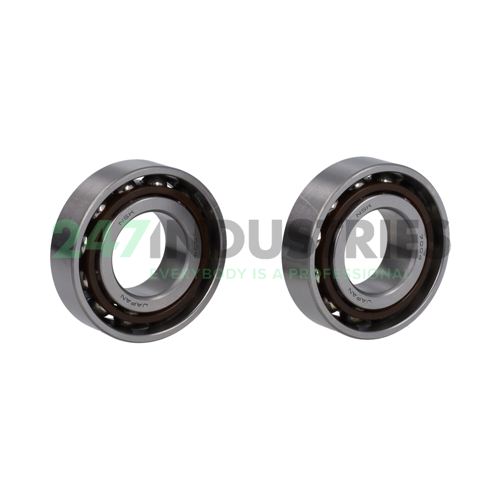

7004CTYDBC8P4 NSK

All dimensions

1. Inner (d) MM 20
2. Outer (D) MM 42
3. Width (B) MM 24
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.9449

Suffix description

1. C 15° Contact Angle
2. TY Ball Bearing, Angular Contact, Super Precision, Glass Fibre Reinforced Polyamide Cage
3. DB Matched Pair - Back to Back Configuration
4. C8 Medium Preload
5. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-ABEC.7

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 7004CTYDBC8P4 NSK
4. Also known as 7004CTYDBC8

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.138

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload GB - Medium Preload
7. Lubrication Standard Lubrication
