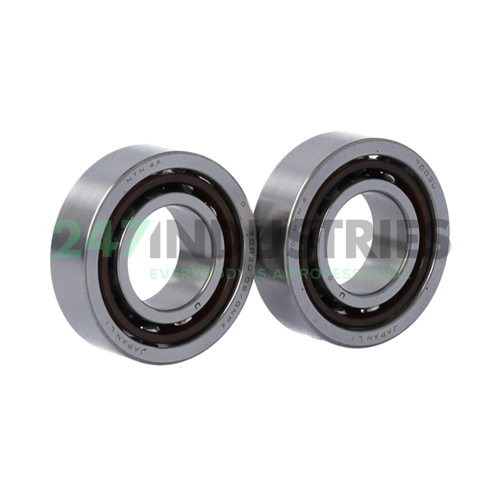

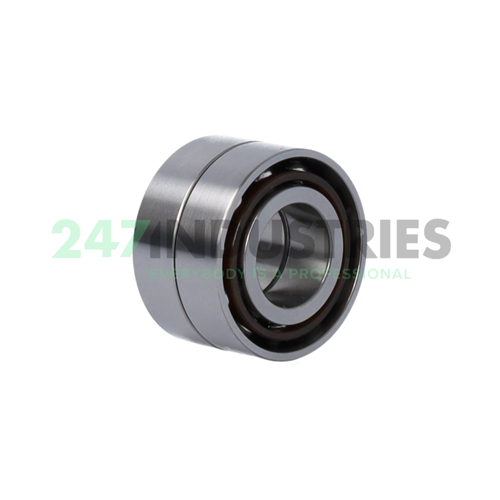

7003UDB/GNP4 NTN

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 35
3. Width (B) MM 20
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.378
6. Width (B) Inch 0.7874

Suffix description

1. 7226C Machined High Tensile Brass Cage
2. U ULTAGE Series
3. DB Duplex (Back To Back)
4. GN Normal Preload
5. P4 Dimensional & Running Accuracy To ISO Tolerance Class 4 (More Accurate Than P5)-ABEC.7

Technical details

1. Availability 2 pcs
2. Brand NTN
3. Item number 7003UDB/GNP4 NTN
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.08

Product Properties

1. Seal No Seal
2. Cage Type P - Plastic Molded Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 30 degrees
5. Pairing DB - O-arrangement, 2
6. Axial Internal Clearance / Preload CB - Normal Axial Clearance
7. Lubrication Standard Lubrication
