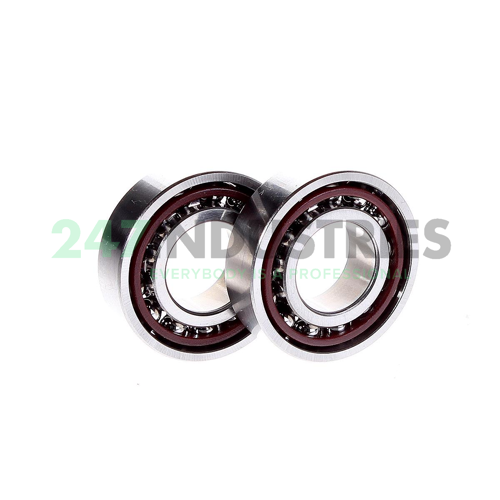

7002CV DU J74 SNR

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 32
3. Width (B) MM 18
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.7087

Suffix description

1. C 15° Contact Angle
2. V Laminated Phenolic Cage Centered On Outer Ring
3. DU Angular Contact Bearing Assembly With Two Bearings That Can Be Matched DB, DF Or DT
4. J74 Dimensional & Running Accuracy To Iso Tolerance Class 4 (More Accurate Than P5)-Abec7,
5. 7 Light Preload

Technical details

1. Availability 18 pcs
2. Brand SNR
3. Item number 7002CV DU J74 SNR
4. Also known as 2MM9102WI CR DUL
   7002CD/P4ADGA
   B7002-C-T-P4S-DUL

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.056

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload DL - 2 Univ Bearings Light Preload
7. Lubrication Standard Lubrication
