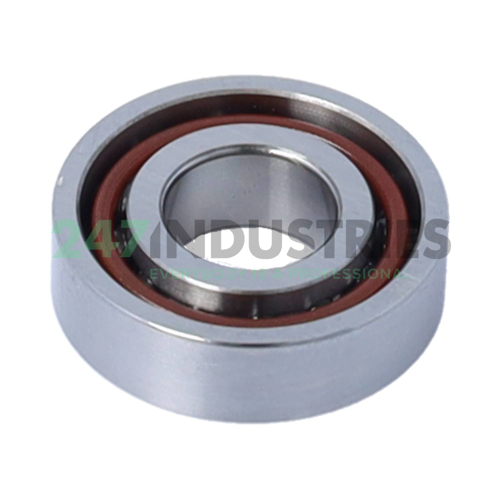

7001CEGA/HCP4A SKF

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 28
3. Width (B) MM 8
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.315

Suffix description

1. CE 15° Contact Angle And (E) Small Size Balls
2. GA Single Row Angular Contact Ball Bearing For Universal Matching. Two Bearings Arranged Back-To-Back Or Face-To-Face Will Have A Light Preload
3. HC Bearing Or Bearing Components Of Ceramic
4. P4A Dimensional Accuracy In Accordance With ISO Tolerance Class 4, Running Accuracy Better Than ISO Tolerance Class 4

Technical details

1. Availability 4 pcs
2. Brand SKF
3. Item number 7001CEGA/HCP4A SKF
4. EAN 7316575978372
5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.02

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision H4 - Hybrid / Ceramic Balls / P4
4. Contact Angle 15° Contact High Speed Design
5. Pairing G - Universal Pairing
6. Axial Internal Clearance / Preload GA - Light Preload
7. Lubrication Standard Lubrication
