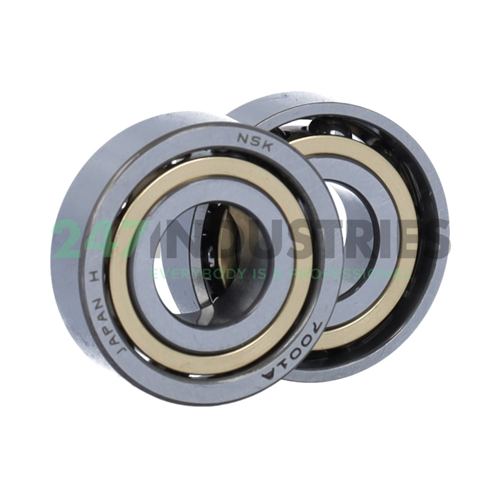

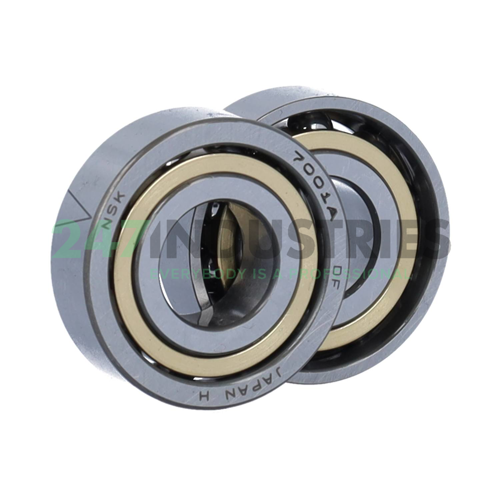

7001ADF NSK

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 28
3. Width (B) MM 16
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 1.1024
6. Width (B) Inch 0.6299

Suffix description

1. A 30° Contact Angle
2. DF Matched Bearing Pair Arranged Face-To-Face

Technical details

1. Availability 10 pcs
2. Brand NSK
3. Item number 7001ADF NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.04

Product Properties

1. Seal No Seal
2. Cage Type M - Brass Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing DF - X-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
