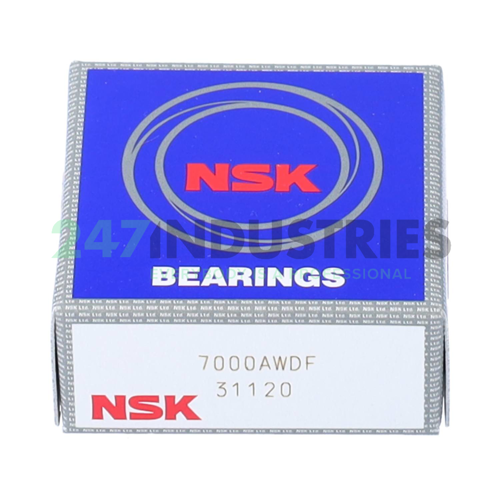

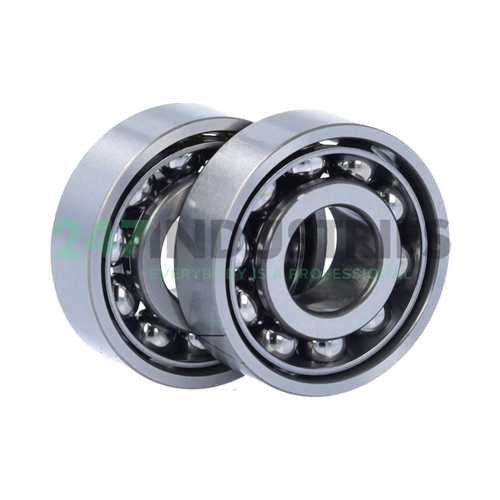

7000AWDF NSK

All dimensions

1. Inner (d) MM 10
2. Outer (D) MM 26
3. Width (B) MM 16
4. Inner (d) Inch 0.3937
5. Outer (D) Inch 1.0236
6. Width (B) Inch 0.6299

Suffix description

1. A 30° Contact Angle
2. W Steel Cage
3. DF Two Single Row Angular Contact Ball Bearings Matched For Mounting In A Face-To-Face Arrangement

Technical details

1. Availability 9 pcs
2. Brand NSK
3. Item number 7000AWDF NSK
4. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.032

Product Properties

1. Seal No Seal
2. Cage Type S - Steel or Standard Cage
3. Precision Standard Precision
4. Contact Angle 30 degrees
5. Pairing DF - X-arrangement, 2
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
