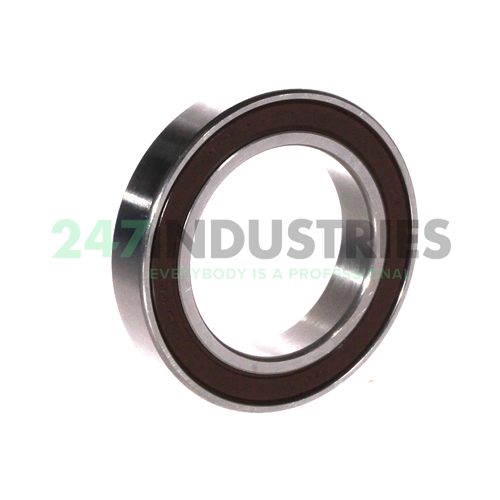

6908DDUCM NSK

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 62
3. Width (B) MM 12
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 2.4409
6. Width (B) Inch 0.4724

Suffix description

1. DDU Rubber Seals At Each Side Of The Bearing
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance

Technical details

1. Availability 52 pcs
2. Brand NSK
3. Item number 6908DDUCM NSK
4. Also known as 61908 2RS
   61908-2RS1
   61908-2RS1/QE6
   61908-2RSR
   6908 2RS
   6908DDU
   6908EE
   6908LLU

5. EAN 00029176066719
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.115

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
