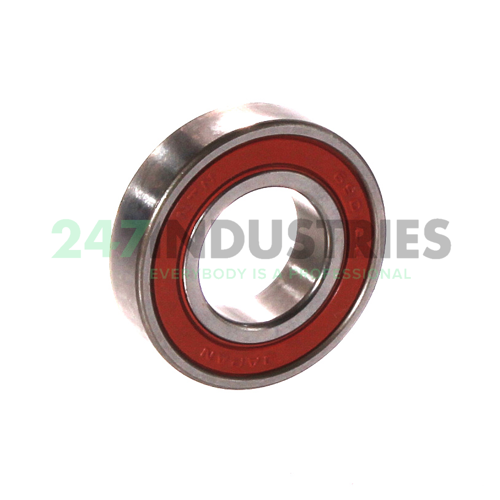

6901LLU/5K NTN

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 24
3. Width (B) MM 6
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.9449
6. Width (B) Inch 0.2362

Suffix description

1. LLU Rubber Seals At Each Side Of The Bearing
2. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6901LLU/5K NTN
4. Also known as 61901 2RS
   61901-2RS1
   61901-2RSR
   6901 2RS
   6901DDU
   6901EE
   6901LLU

5. EAN 4547359006537
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0102

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
