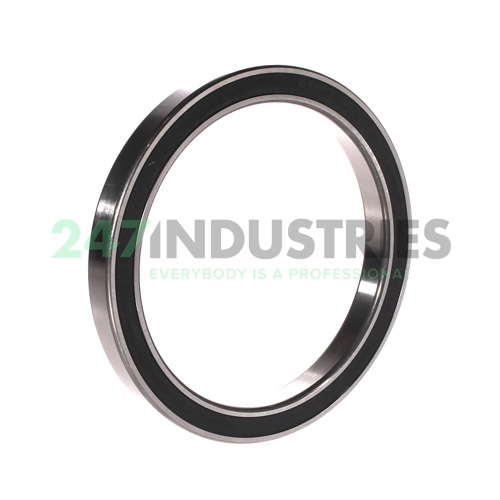

6820LLB/5K NTN

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 115
3. Width (B) MM 13
4. Inner (d) Inch 3.937
5. Outer (D) Inch 4.5276
6. Width (B) Inch 0.5118

Suffix description

1. LLB Synthetic Rubber Seal (Non Contact Type)
2. 5K Grease: Kyodo Yushi / Multemp SRL (-40°C to +150°C)

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 6820LLB/5K NTN
4. Also known as 61820-2RS1
   6820LLB

5. EAN 4547359586275
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.31

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RU - Two Seals / Non Contact Type
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Higher and Lower Temperature Grease
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
