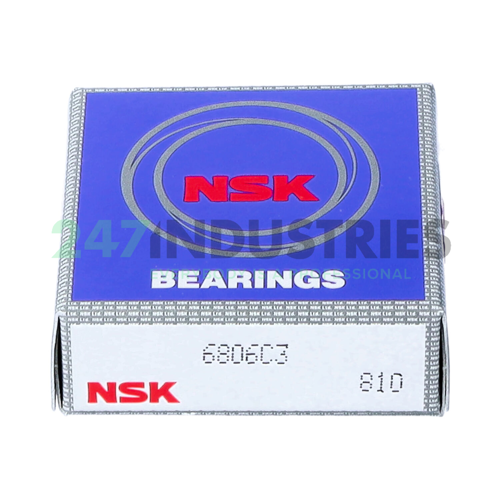

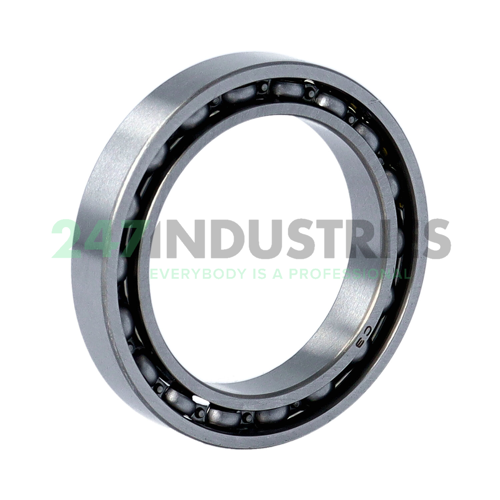

6806C3 NSK

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 42
3. Width (B) MM 7
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 1.6535
6. Width (B) Inch 0.2756

Suffix description

1. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 12 pcs on Mon 6 Jul
2. Brand NSK
3. Item number 6806C3 NSK
4. Also known as 61806/C3
   61806C3
   61806-C3

5. EAN 00029176521911
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.0224

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
