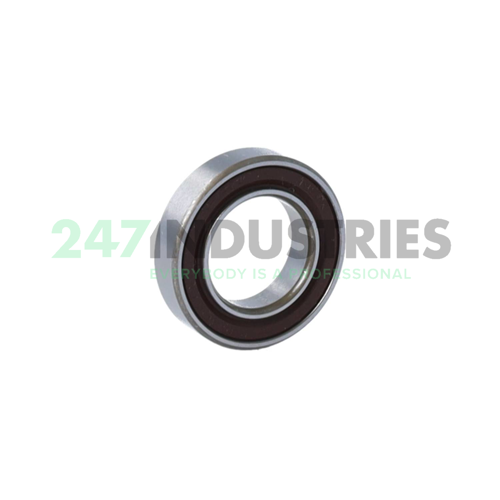

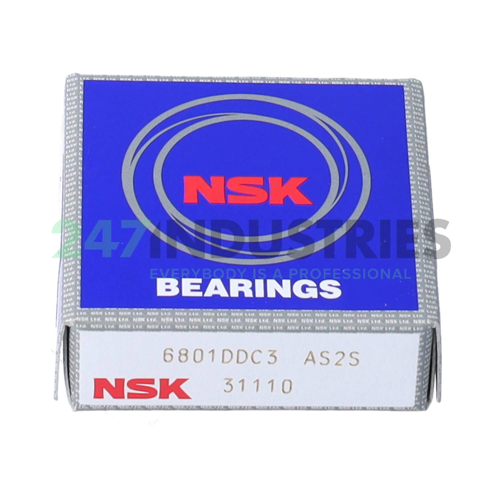

6801DDC3 NSK

All dimensions

1. Inner (d) MM 12
2. Outer (D) MM 21
3. Width (B) MM 5
4. Inner (d) Inch 0.4724
5. Outer (D) Inch 0.8268
6. Width (B) Inch 0.1969

Technical details

1. Availability 31 pcs
2. Brand NSK
3. Item number 6801DDC3 NSK
4. Also known as 61801 2RS C3
   61801-2RS1/C3
   61801-2RSR-C3
   6801 2RS C3

5. EAN 00029176671470
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.006

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
