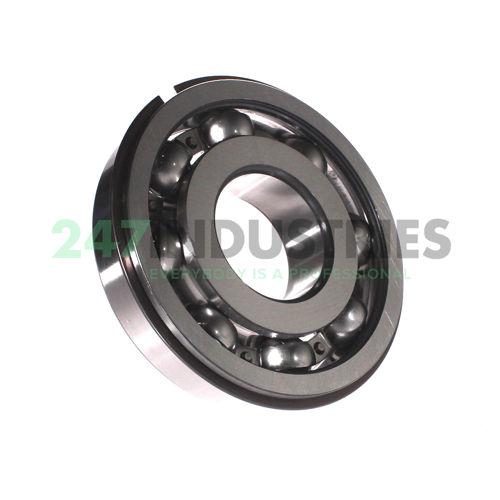

6412-NR-C3 FAG

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 150
3. Width (B) MM 35
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.378

Suffix description

1. NR Snap Ring Groove In Bearing Outer Ring And Appropriate Snap Ring
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 6412-NR-C3 FAG
4. Also known as 0384060200030

5. EAN 4012801077699
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 2.835

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification NR - Groove and Snap Ring
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
