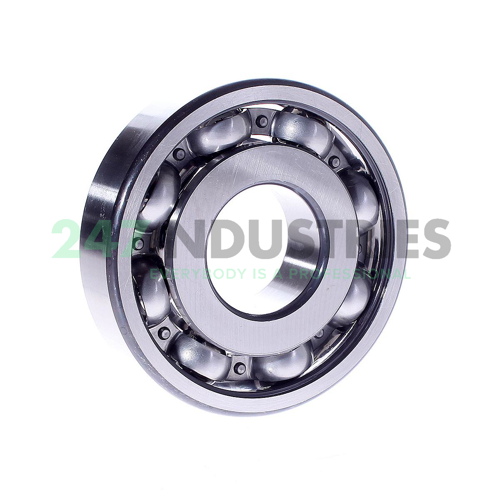

6409 FAG

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 120
3. Width (B) MM 29
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.1417
7. Width (b) mm 29

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6409 FAG
4. Also known as 0167247390000

5. EAN 4012801076982
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.53

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 47500
2. Limiting speed (n G) 8500
3. Reference speed (n ϑr) 6800
