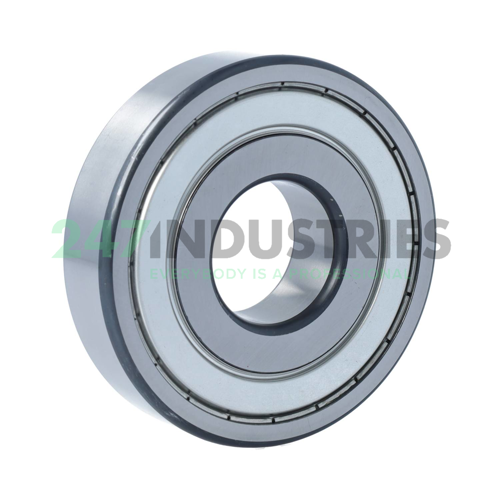

6408-C-2Z-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 110
3. Width (B) MM 27
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.063
7. Width (b) mm 27

Suffix description

1. C Deep Groove Ball Bearings Of Generation C, Modified Internal Construction
2. 2Z Gap Seals On Both Sides
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6408-C-2Z-C3 FAG
4. Also known as 0939989450030

5. EAN 4054372544323
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.23

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 38000
2. Limiting speed (n G) 8000
3. Reference speed (n ϑr) 7700

Downloads and links

1. Download datasheet Download datasheet
2. Link to Manufacturer Link to Manufacturer
