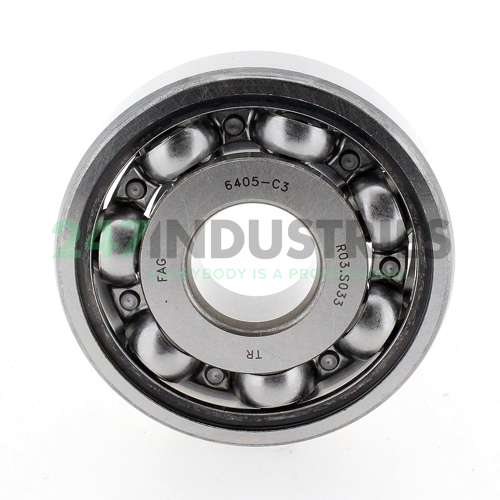

6405-A-C3 FAG

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 80
3. Width (B) MM 21
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 3.1496
6. Width (B) Inch 0.8268
7. Width (b) mm 21

Suffix description

1. A Internal Design Modification
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 97 pcs
2. Brand FAG
3. Item number 6405-A-C3 FAG
4. Also known as 0686827940030

5. EAN 4012802619997
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.543

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19100
2. Radial Dynamic Load Rating Cr (N) 35500
3. Limiting speed (n G) 12400
4. Reference speed (n ϑr) 10100
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
