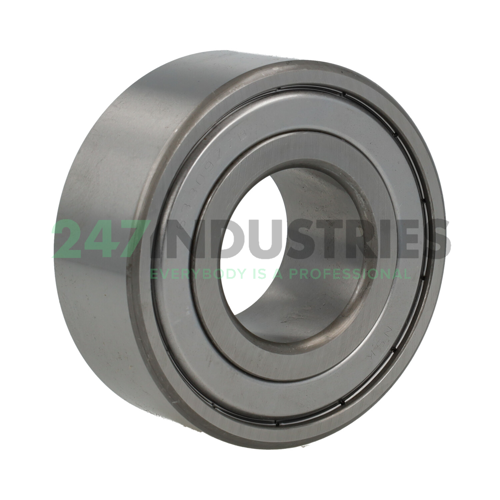

63309ZZCMCP3 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 39,7
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.563

Suffix description

1. ZZ Two Metallic Shields
2. CM Ball Bearing, Special Radial Internal Clearance For Electric Motors, Can Be Used As Standard 'CN' Clearance
3. CP3 Pair Of Bearings With Special Preload; The Figures Indicate The Mean Value Of The Preload In µm

Technical details

1. Availability 13 pcs
2. Brand NSK
3. Item number 63309ZZCMCP3 NSK
4. Also known as 63309ZZ

5. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Dim. Acc. P4, Run. Acc. P2
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
