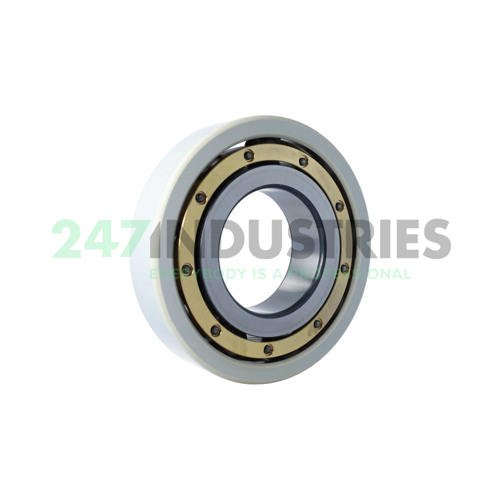

6321-M-J20AA-C3 FAG

All dimensions

1. Width (B) MM 49
2. Width (B) Inch 1.9291

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. J20AA Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 3.000 V, Layer Thickness 200 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 6 pcs
2. Brand FAG
3. Item number 6321-M-J20AA-C3 FAG
4. Also known as 0670790400030
   6321M/C3VL0241

5. EAN 4047643249232
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 9.6

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Medias description Deep groove ball bearing 63..-M-J20AA, single row, cf. DIN 625-1
