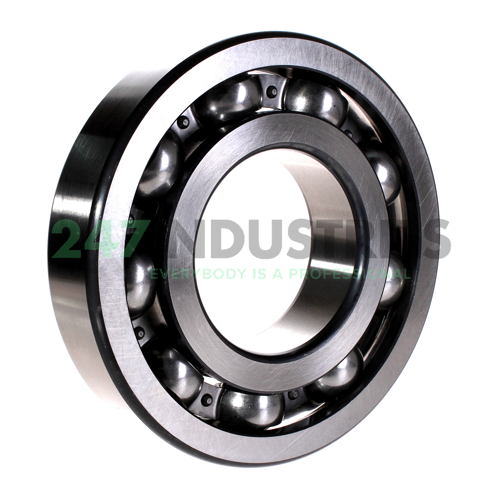

6320-P5 FAG

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 215
3. Width (B) MM 47
4. Inner (d) Inch 3.937
5. Outer (D) Inch 8.4646
6. Width (B) Inch 1.8504

Suffix description

1. P5 Dimensional And Running Accuracy To ISO Tolerance Class 5

Technical details

1. Availability 1 pc
2. Brand FAG
3. Item number 6320-P5 FAG
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 7.46

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision P5 Precision (Higher than P6)
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 137000
2. Radial Dynamic Load Rating Cr (N) 177000
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Deep groove ball bearings 63, main dimensions to DIN 625-1
