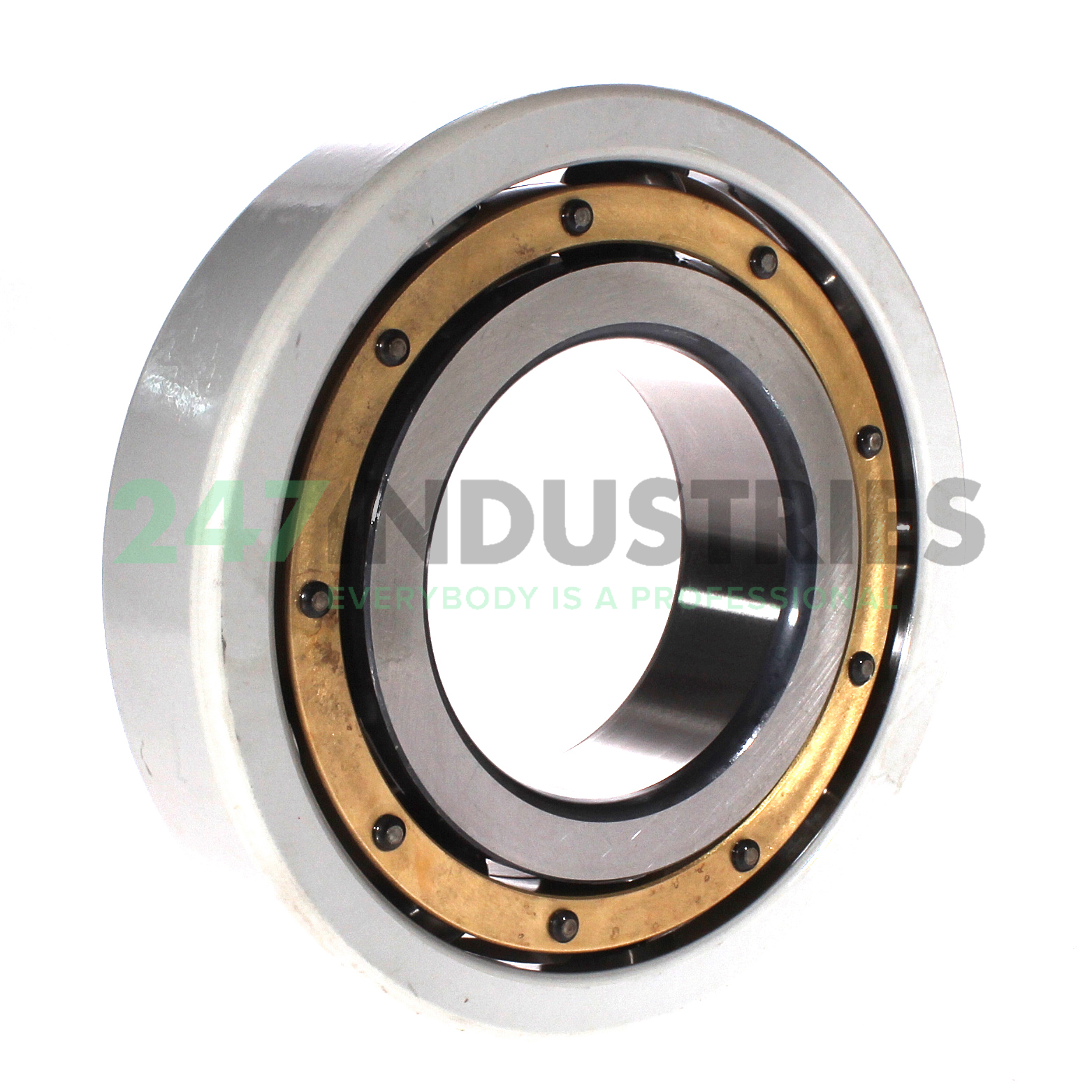

6319-M-J20AA-C4 FAG

All dimensions

1. Inner (d) MM 95
2. Outer (D) MM 200
3. Width (B) MM 45
4. Inner (d) Inch 3.7402
5. Outer (D) Inch 7.874
6. Width (B) Inch 1.7717
7. Width (b) mm 45

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. J20AA Current Insulation, Outer Ring Ceramic Coated, Breakdown Voltage DC: 3.000 V, Layer Thickness 200 μm, Ohmic Resistance: 50 MΩ. Speciality Humid Environments
3. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number 6319-M-J20AA-C4 FAG
4. Also known as 0390158400040
   6319M/C4VL0241
   7MC3-6319L1BC4

5. EAN 4026677998187
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 6.93

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type M - Brass Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Breakdown Voltage 1000v
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 113000
2. Radial Dynamic Load Rating Cr (N) 154000
3. Limiting speed (n G) 6000
4. Reference speed (n ϑr) 4950
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearing 63..-M-J20AA, single row, cf. DIN 625-1
